Patient Monitor

Precision in compactness

Compact & Fully-Automated Bench Top Analyzer

Experience efficient and reliable laboratory testing with respons®240c. This fully automated bench top analyzer is perfect for small laboratories since it offers a constant throughput of 240 tests per hour (400 tests/hour incl. optional ISE). Its compact design and user friendly interface provide a valuable asset to any laboratory. Benefit from low operating costs, minimal maintenance and precise results.

Plug-in CO2 module
IPX4 waterproof design
Anti-drop and anti-seismic design.
Unique dual-wavelength measurement technology, free of module calibration during long-term use.
Black-body light source with high reliability and stability, ensures long-term stability and precision of the product.
Dual-channel sensor with long-term stability, holds minimal effect on temperature fluctuation.

User-friendly and Intuitive Interface

12-Leads synchronous acquisition and display.
Various layout: 12*1, 6*2, 6*2+1, 3*4+1, 3*4+3.
The ECG report can be flexibly zoomed in, zoomed out, viewed, printed, and exported as a PDF.
Professional ECG report template, in line with clinical practice.
Historical reports can be searched, reviewed, re-edited, etc.
Average template

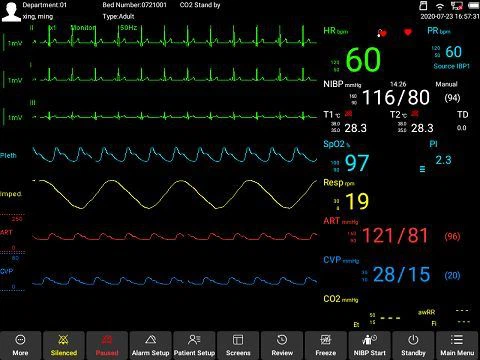

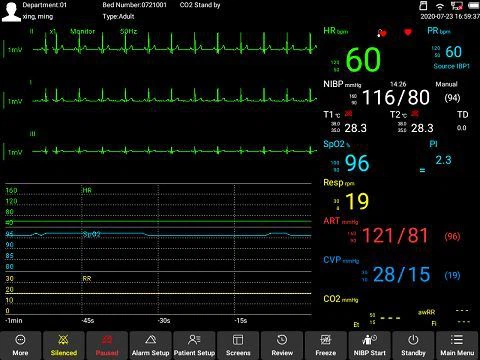

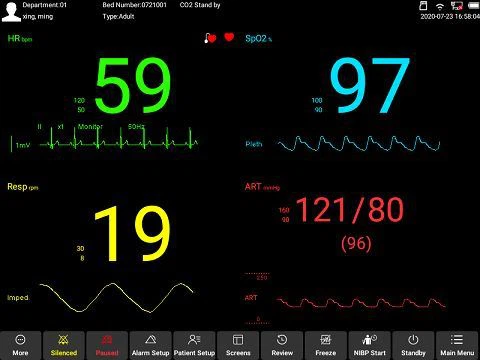

Normal Interface

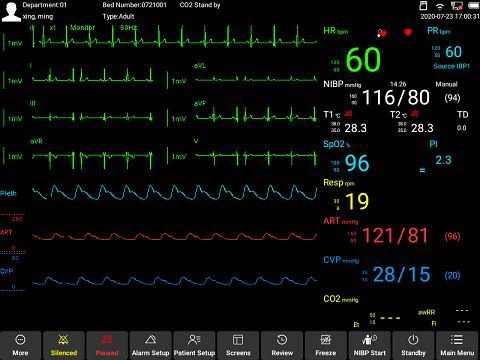

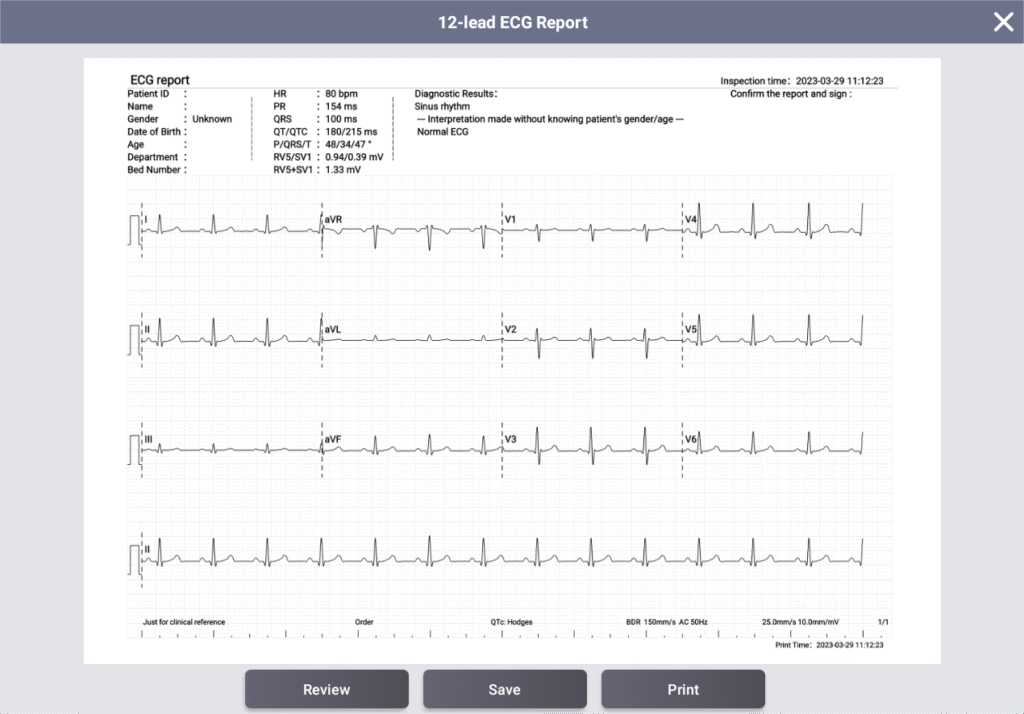

12-Lead ECG Report

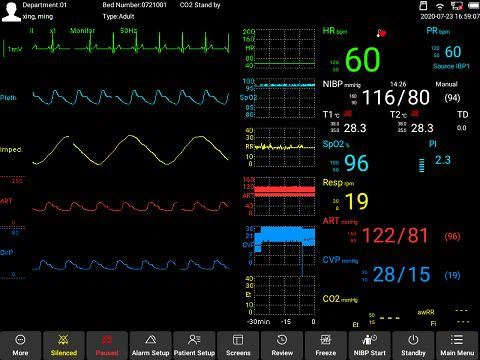

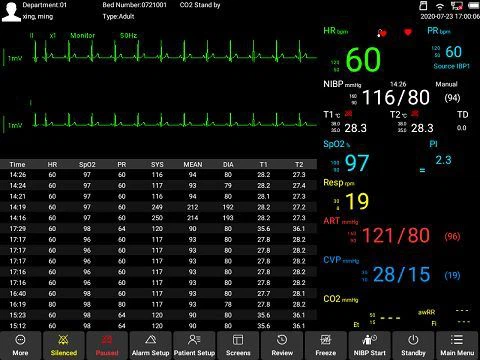

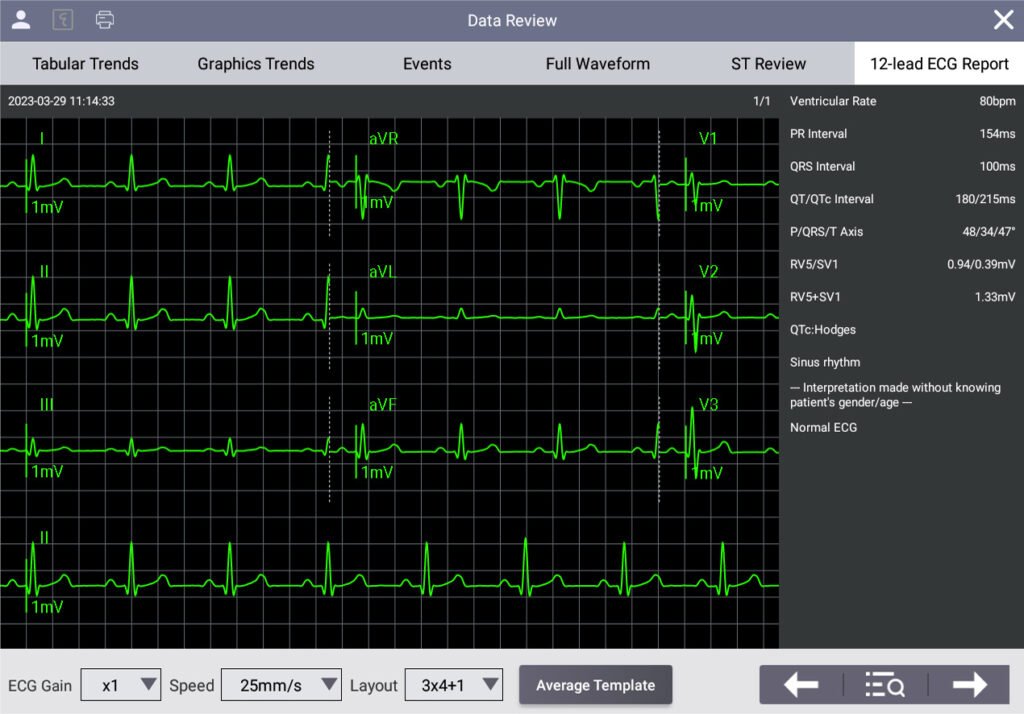

Data Review

Normal Interface

12-Lead ECG Report

Data Review

Outstanding Monitoring Technology

With the combination of ZONCARE patented QRS complex detection algorithm ( Patent No.: ZL 201710091357.9) and intelligent heart rate lead algorithm, A40 can ensure more accurate heart rate while occupying less resources and computation under long-term monitoring environment, even lead loss, patient turn-over or limb movements happens.
The deringing filtering algorithm patented by ZONCARE (Patent No.: ZL 201811443998.7) reduces the oscillation distortion and makes the waveform more accurate for patients with pacemaker or children while doing ECG monitoring.
The blood pressure algorithm patented by ZONCARE (Patent No.: ZL 201811613353.3) has the advantages of short inflation time, fast measurement and less patient resistance.
Supports specialized optimization
for certain group of people(Strong
ECG signal in respiratory signal),
and offers more accurate respiratory rate.
Full-lead pace detection function, which can effectively adapt to the situation that the pacemaker signal is getting weaker.

Plentiful Clinical Application

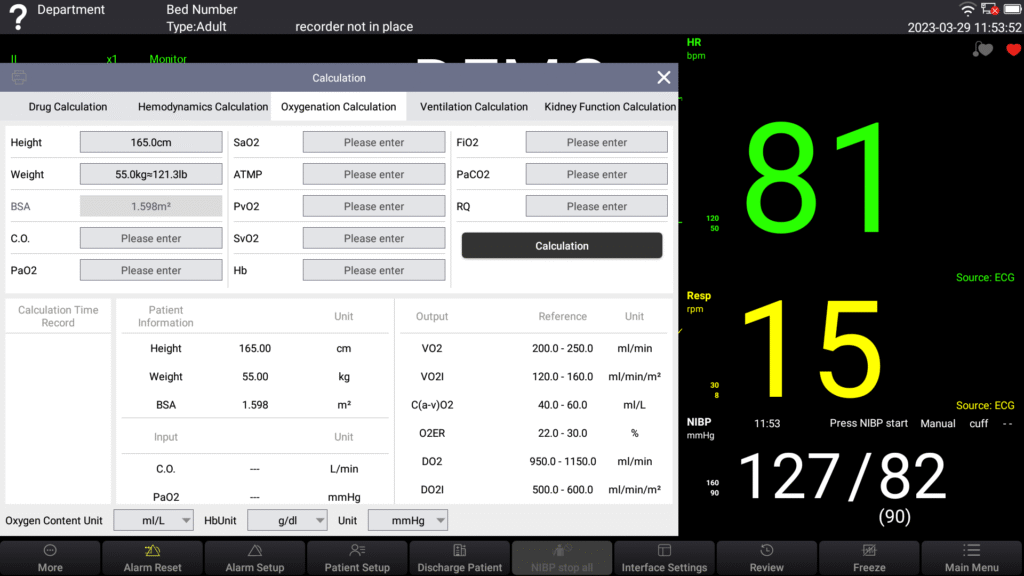

Oxygenation calculation

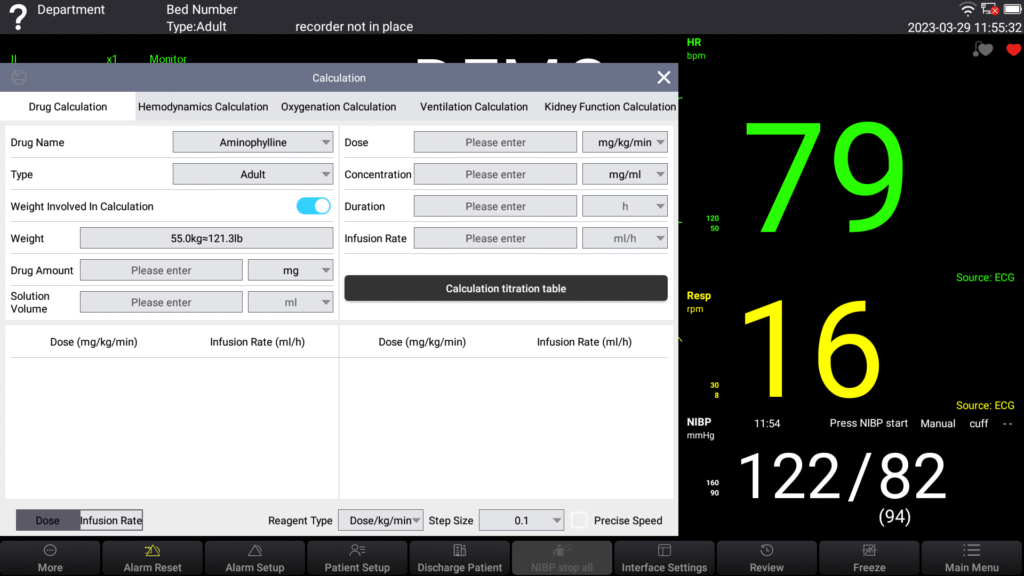

Drug calculation

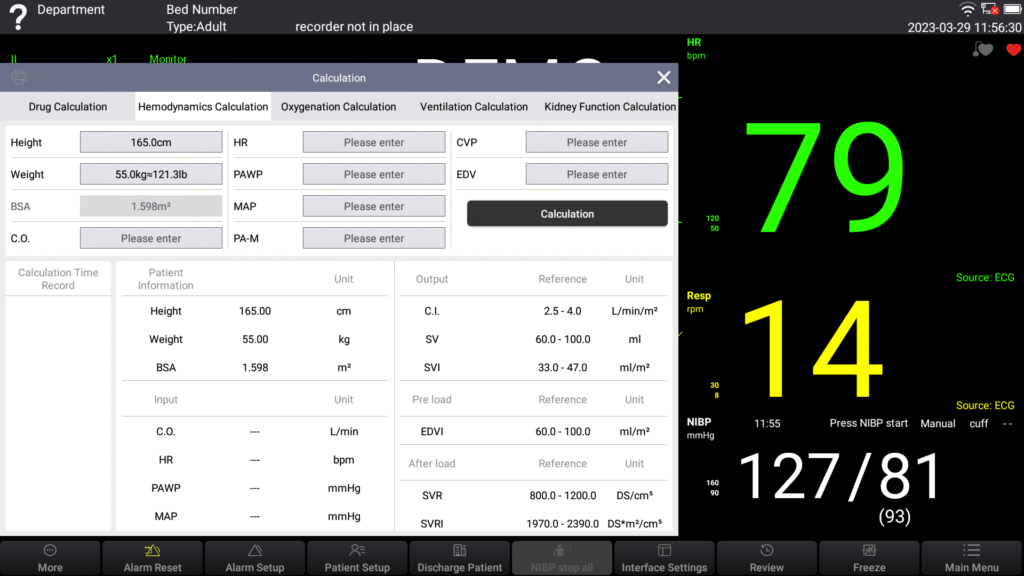

Hemodynamics calculation

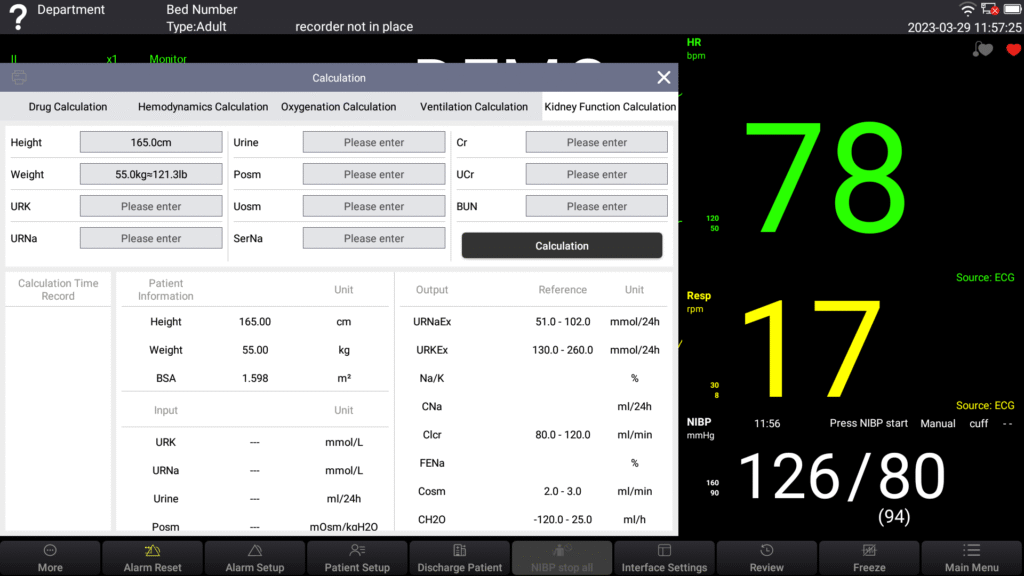

Kidney Function calculation

Oxygenation calculation

Drug calculation

Hemodynamics calculation

Kidney Function calculation

Reaction system

The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system also includes maintenance-free thermostatization of cuvettes through air heating, which eliminates the need for time-consuming servicing of a water bath. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.

Advanced HbA1c testing

The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.

Reagent/Sample rotor

respons®240c offers an onboard capacity of up to 36 DiaSys respons® bottles in an refrigerated reagent rotor (2-12°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 36 flexible positions are available for samples/calibrators/controls.

Reagent/Sample probe

The liquid level detection system of the analyzer prevents dry aspiration and ensures in combination with the sample clot detection functions an accurate sample handling. Collision detection protects the probe from damage, while real time inventory monitoring provides a clear overview of remaining tests. Additionally, sample clot detection enhances result reliability.

Throughput – 240 tests/hour (400 tests/hour incl. optional ISE)
Sample types – Serum, plasma, urine, whole blood
Sample volume – 2-35 μL, 0.1 μL steps
Reagent/Sample probe – Liquid level detection, clot detection and collision protection
Reagent pipetting – 10-200 μL, 0.5 μL steps
STAT-analytics – Yes
Ion measurement – ISE upgrade kit available
Barcode identification – Sample, reagent
Sample tray – 36 samples
Reagent on board capacity – 34 respons® containers cooled to 2-12°C
Reaction unit – 80 cuvettes, 8-step auto-washing
Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
Photometric linearity and resolution – 0-3.5 OD, 0.0001 OD
Water consumption – < 6.5 liters per hour
Dimensions – 86 cm (W) × 66 cm (D) × 55 cm (H)
Weight – approx. 115 kg

Download Brochure

Product Feature

Compatibility

Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.

User-friendly

10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation

Less Maintenance

Auto-cleaning of sample probe and tubes. Automatic fault processing function

For More Details

Low Consumption

Only need three reagents. Sample consumed ≤20uL

Efficient

60 samples per hour

Lightweight

390mm(L)×285mm(W)×390mm(H) Weight≤16Kg

Product Video

Specifications

● Precision – ≤2.0% (3.5-15.0×10^9)/L

● Linear Range – (0-100.0×10^9)/L

● Contamination Rate – ≤0.5%

● Precision – ≤1.5% (3.0-6.0×10^12)/L

● Linear Range – (0.10-8.00×10^12)/L

● Contamination Rate – ≤0.5%

● Precision – ≤1.5% (100-180) g/L

● Linear Range – (0-250) g/L

● Contamination Rate – ≤0.6%

● Precision – ≤1.0% (70-120)fL

● Linear Range – ( – )

● Contamination Rate – ( – )

● Precision – ≤4.0% (150-500×10^9)/L

● Linear Range – (0-1000×10^9)/L

● Contamination Rate – ≤1.0%

For More Details

Reliability in routine

Compact & Fully-Automated Bench Top Analyzer

Experience laboratory work redefined. respons®420c is a fully automated random access analyzer designed to deliver reliable results with a constant throughput of up to 420 tests per hour (620 tests/hour incl. ISE). Due to its optimal cost-effectiveness and ease of use, it perfectly fits in small to medium sized laboratories.

Smooth Operation and Exquisite Display

Integrated Menu Design Simplifies Operation Procedures

Customized parameter layout and big numerics display, much closer to clinical application
Various hotkey editing function, convenient for faster operation
Single-interface with three stage menu design ensures that 95% of operations can be completed within 2 steps
Up to 8 intuitive display interfaces, including normal, big numeric, other bed observation, full screen 7-lead...

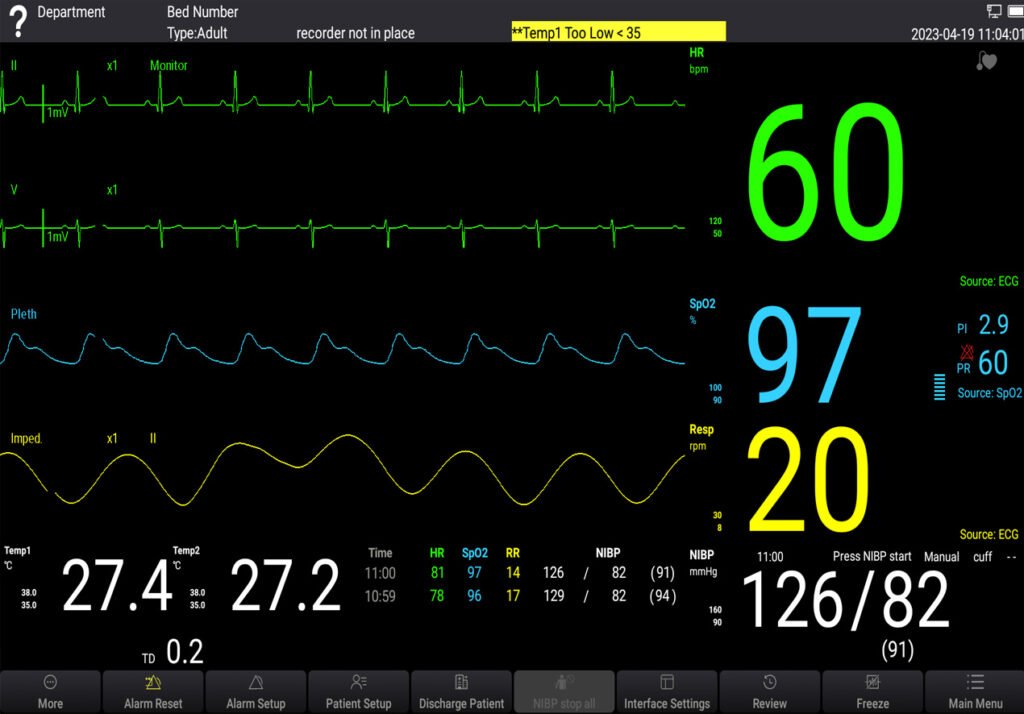

Normal Interface Setting

Big Numerics Interface Setting

Hotkey Editing Interface

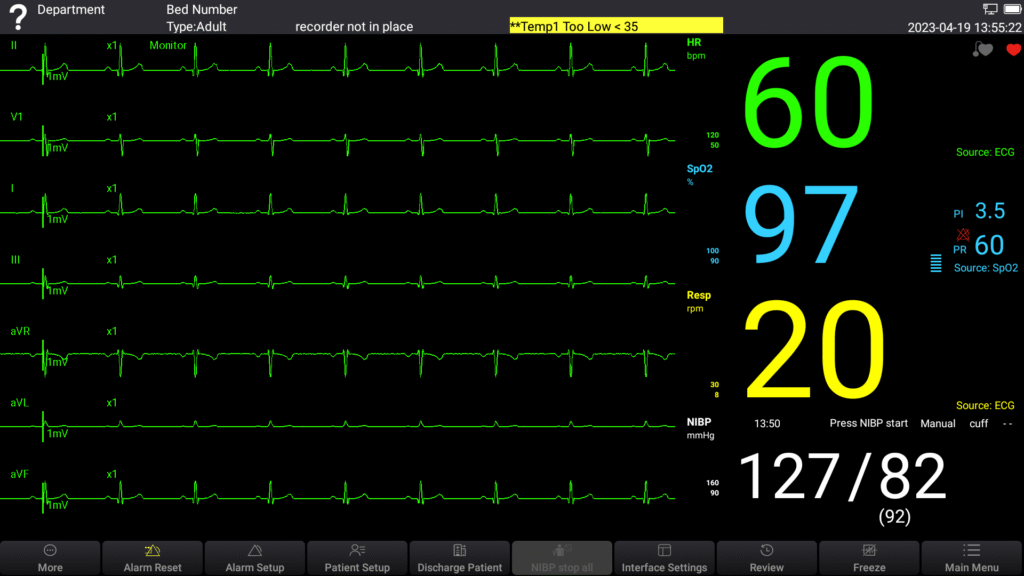

Full Screen 7-Lead

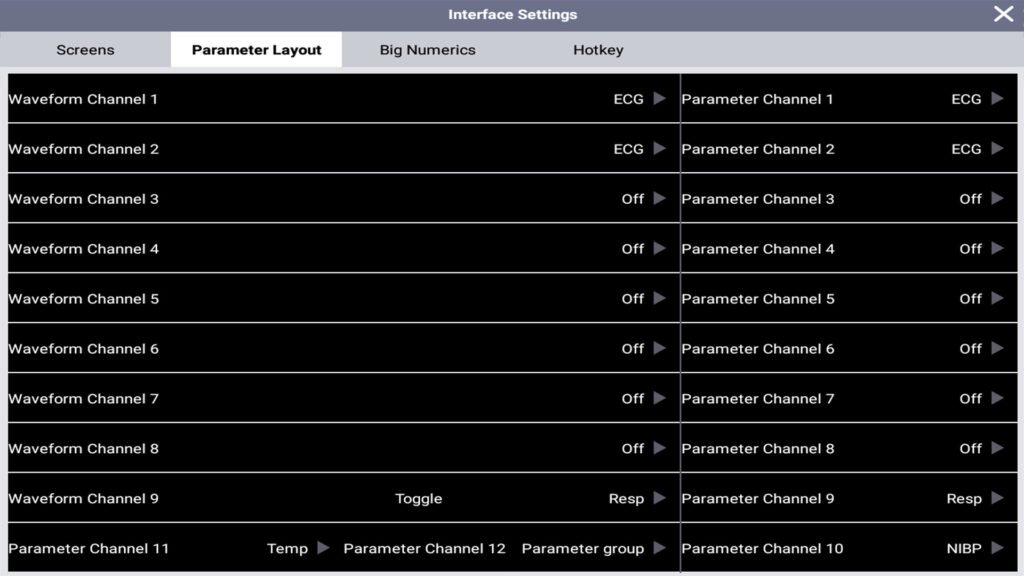

Normal Interface Setting

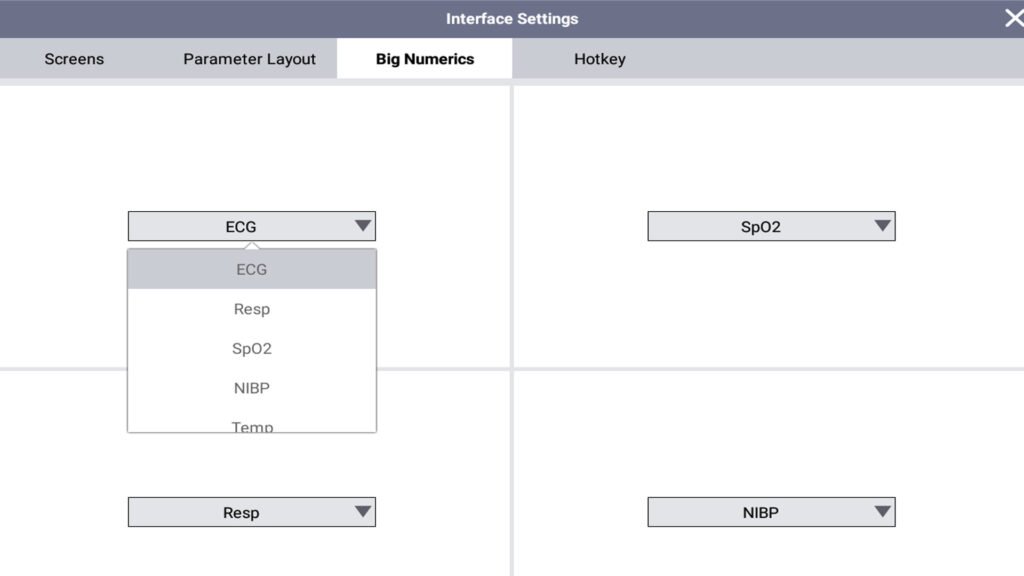

Big Numerics Interface Setting

Hotkey Editing Interface

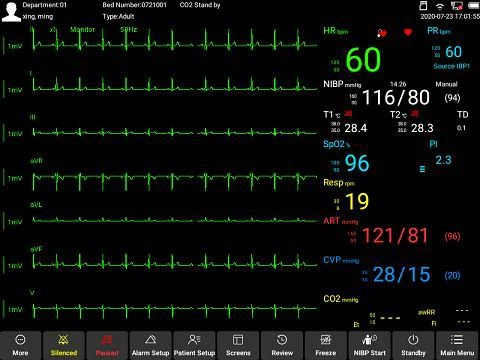

Full Screen 7-Lead

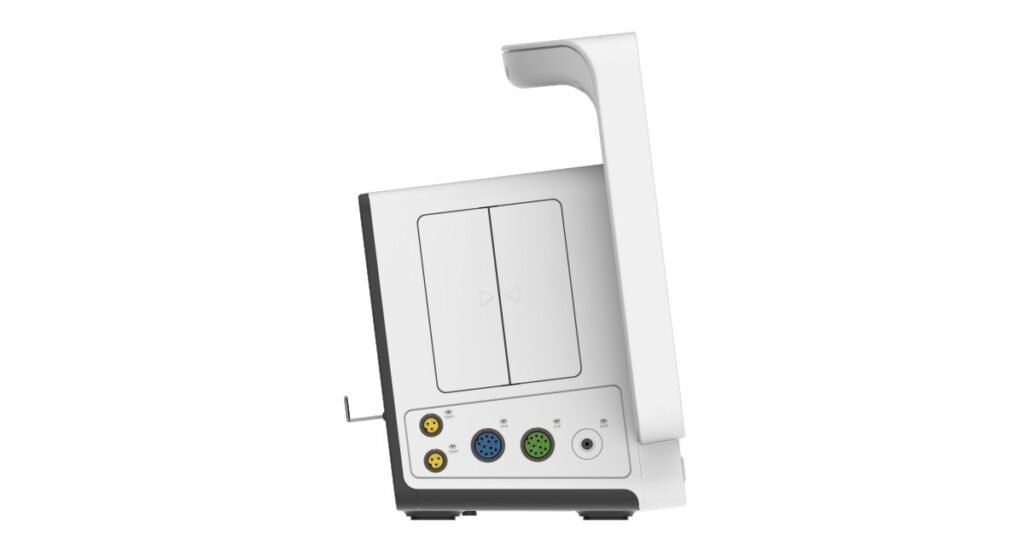

Ergonomic Design

Plug-in lithium battery with high-capacity

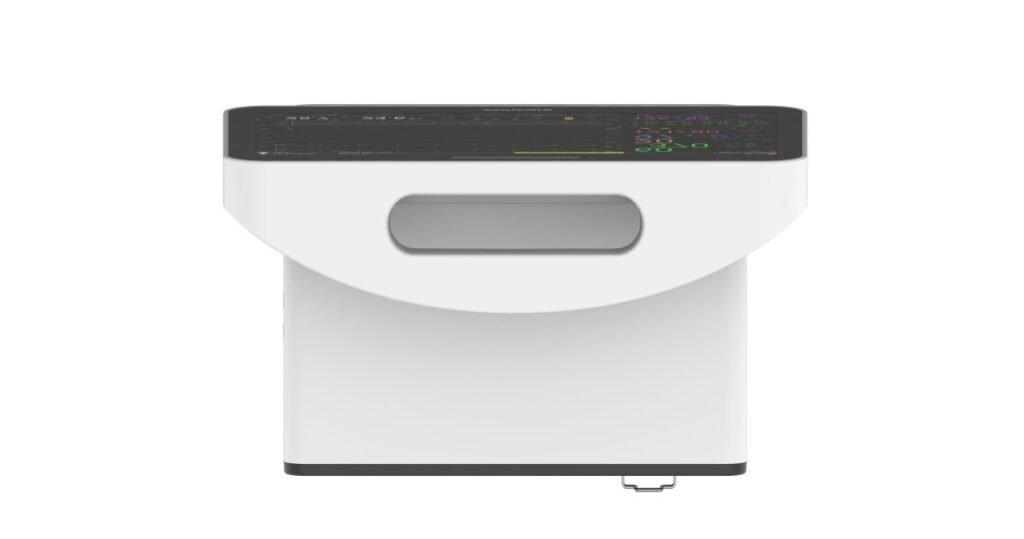

Integrated fixed handle design

Rebound compartment door

Plug-in lithium battery with high-capacity

Integrated fixed handle design

Rebound compartment door

Outstanding Monitoring Technology

With the combination of ZONCARE patented QRS complex detection algorithm ( Patent No.: ZL 201710091357.9) and intelligent heart rate lead algorithm, A20 can ensure more accurate heart rate while occupying less resources and computation under long-term monitoring environment, even lead loss, patient turn-over or limb movements happens.
The deringing filtering algorithm patented by ZONCARE (Patent No.: ZL 201811443998.7) reduces the oscillation distortion and makes the waveform more accurate for patients with pacemaker or children while doing ECG monitoring
The blood pressure algorithm patented by ZONCARE (Patent No.: ZL 201811613353.3) has the advantages of short inflation time, fast measurement and less patient resistance;
Respiratory algorithm can effectively reduce the false respiratory alarms and reduce the fatigue of doctors on doctors alarms; Meanwhile it supports specialized optimization for certain group of people(Strong ECG signal in respiratory signal), and offers more accurate respiratory rate.
Full-lead pace detection function, which can effectively adapt to the situation that the pacemaker signal is getting weaker.

Plentiful Clinical Application

Oxygenation calculation

Drug calculation

Hemodynamics calculation

Kidney Function calculation

Oxygenation calculation

Drug calculation

Hemodynamics calculation

Kidney Function calculation

Reaction system

The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system includes maintenance-free thermostatization of the cuvettes by contact heating (metal block), which ensures stable temperature control. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.

Reagent rotor

respons®420c offers an onboard capacity of up to 40 DiaSys respons® bottles in a refrigerated reagent rotor (2-8°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 40 flexible positions are available for samples/calibrators/controls.

Sample rotor

In total 102 positions, including 68 positions (outer ring) with automatic barcode reading and additional 34 positions (inner ring) designated for calibrators (10), controls (9), STAT samples (11), and cleaners (4) are available on the sample rotor. It hosts all major primary tubes and sample cups while ensuring high-priority processing of STAT samples. Additionally, auto dilution and automatic adaptation of the measuring window in case of substrate depletion minimize manual work, reduce rerun costs, and optimize turn around time.

Advanced HbA1c testing

Throughput – 2420 tests/hour (with ISE 620 tests/hour)
Sample types – Serum, plasma, urine, whole blood
Sample volume – 2-45 μL, 0.1 μL steps
Sample probe – Liquid level detection, clot detection and collision protection
Reagent pipetting – 10-200 μL, 0.5 μL steps
Reagent probe – Liquid level detection, bubble detection and collision protection
STAT-analytics – Yes
Ion measurement – Optional ISE (Na, K, Cl)
Barcode identification – Sample, reagent
Sample tray – 102 positions
Reagent on board capacity – 40 respons® containers cooled to 2-8°C
Reaction unit – 93 cuvettes, 8-step auto-washing
Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
Photometric linearity and resolution – 0-3.5 OD
Water consumption – < 20 liters per hour
Dimensions – 105 cm (W) × 72 cm (D) x 115 cm (H)
Weight – approx. 200 kg
