Holter ECG and
ABPM
Compact & Fully-Automated Bench Top Analyzer
Features

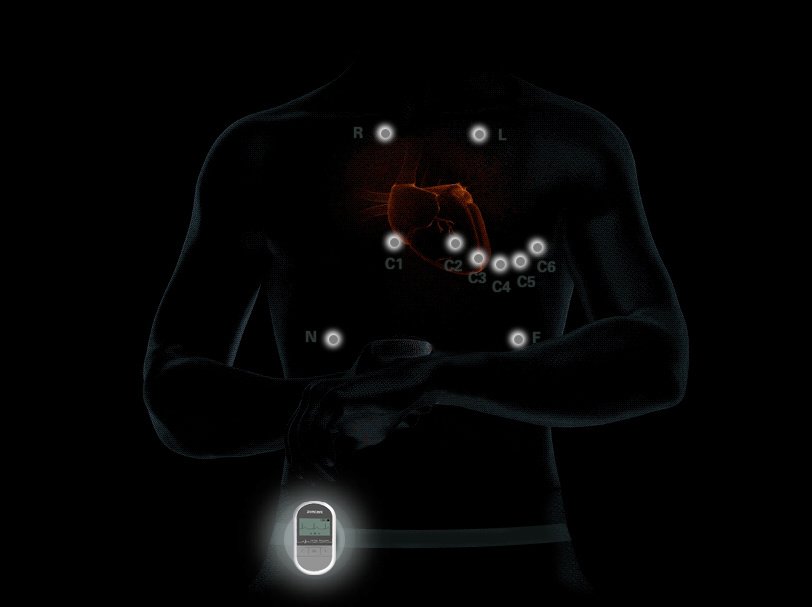

- Compatible with 3 leads, 12 leads, and automatic recognition based on lead wires.
- Storage capacity: 16G, 24-hour data download in 10 seconds.
- Specification: 95mm*55mm*17mm; weight less than 70g.
- Sampling rate: 32000Hz.

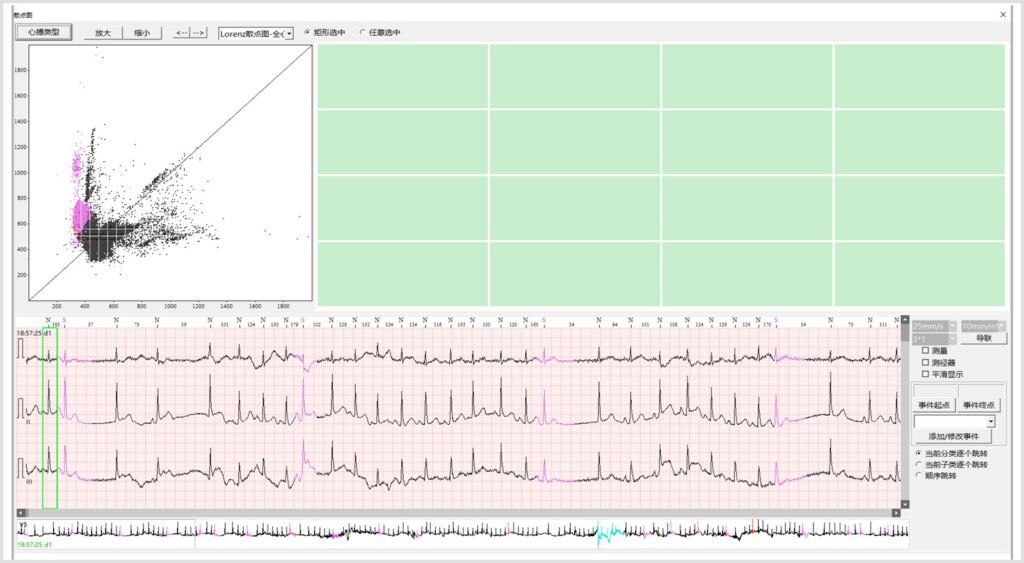

Analyzing Software
- Windows XP, Windows server 2003, Win7 32/64bits, Win8 32/64bits

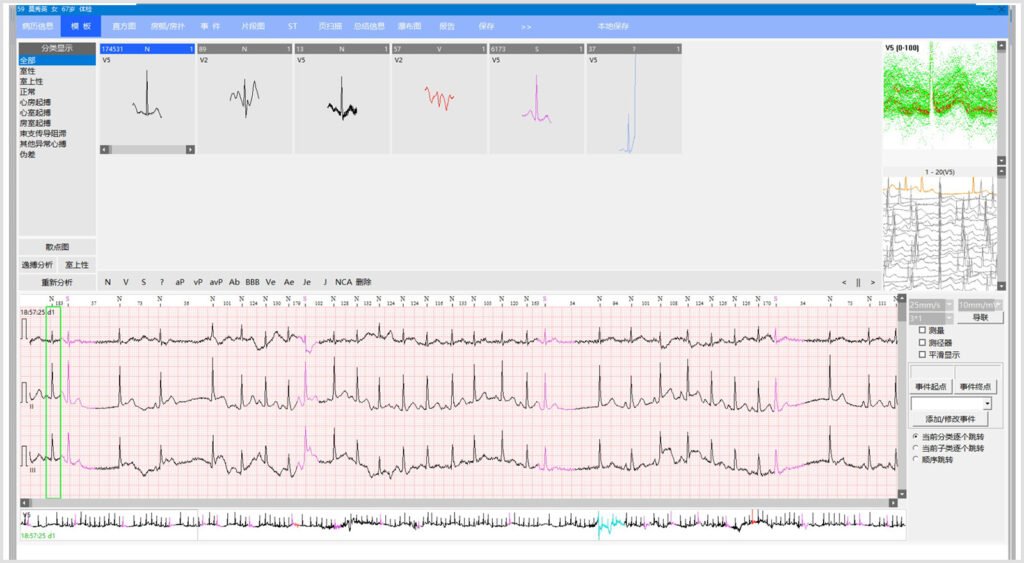

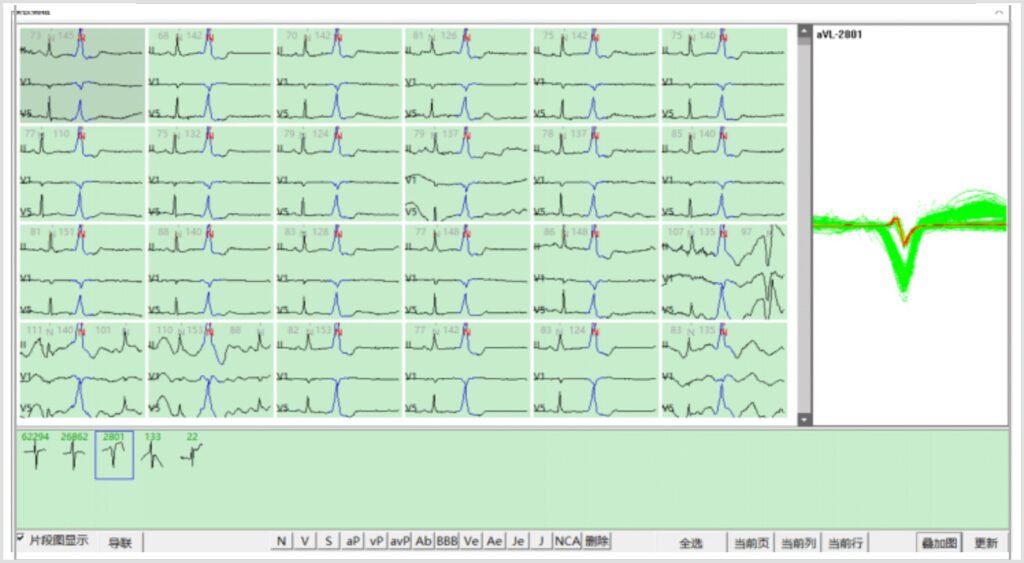

- Template analysis
- Intelligent analysis of supraventricular premature beats
- Automatic and manual atrial flutter analysis

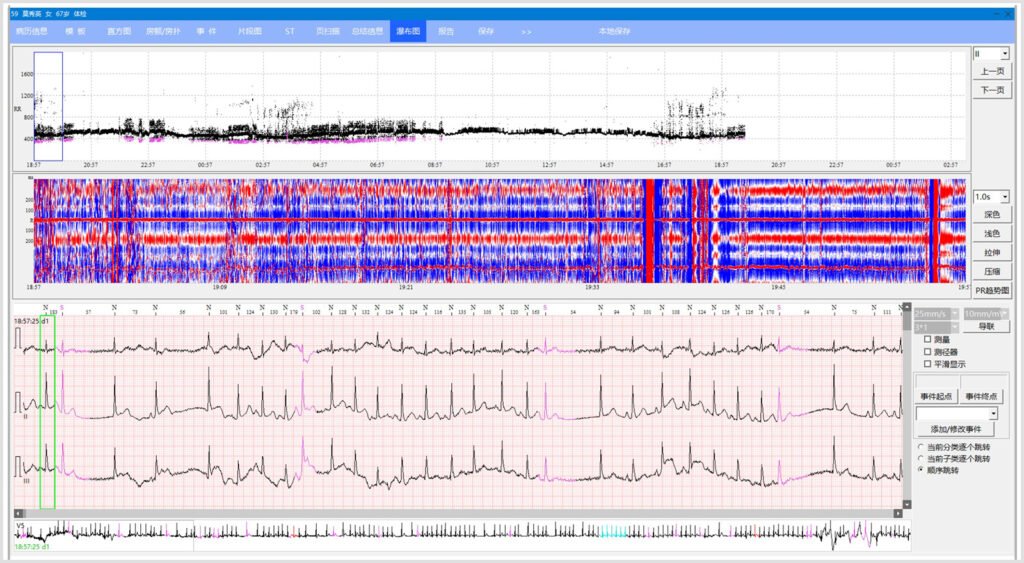

- Waterfall chart
- T wave electric alternation
- Sleep breathing test

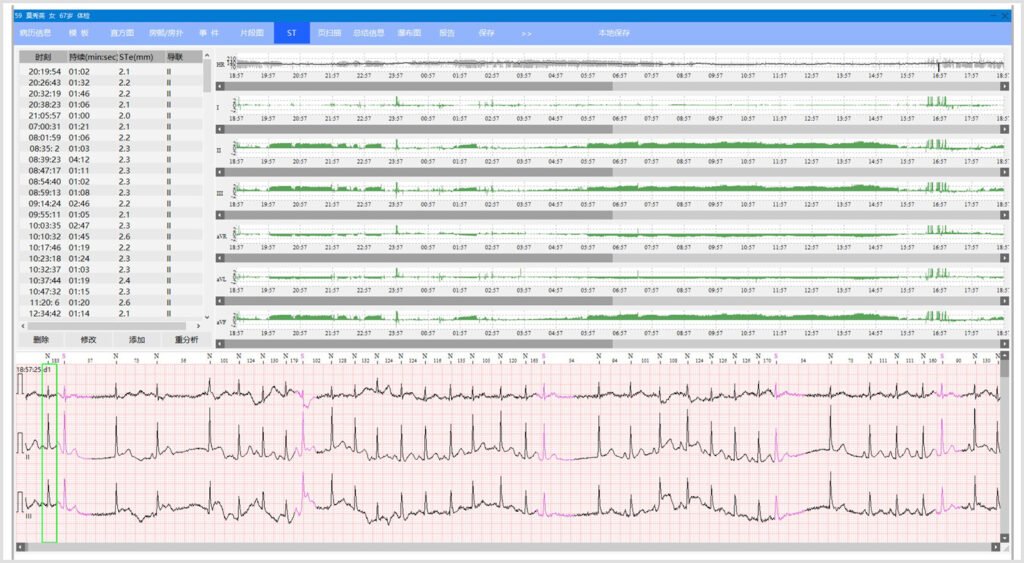

- ST segment high-resolution waveform measurement function

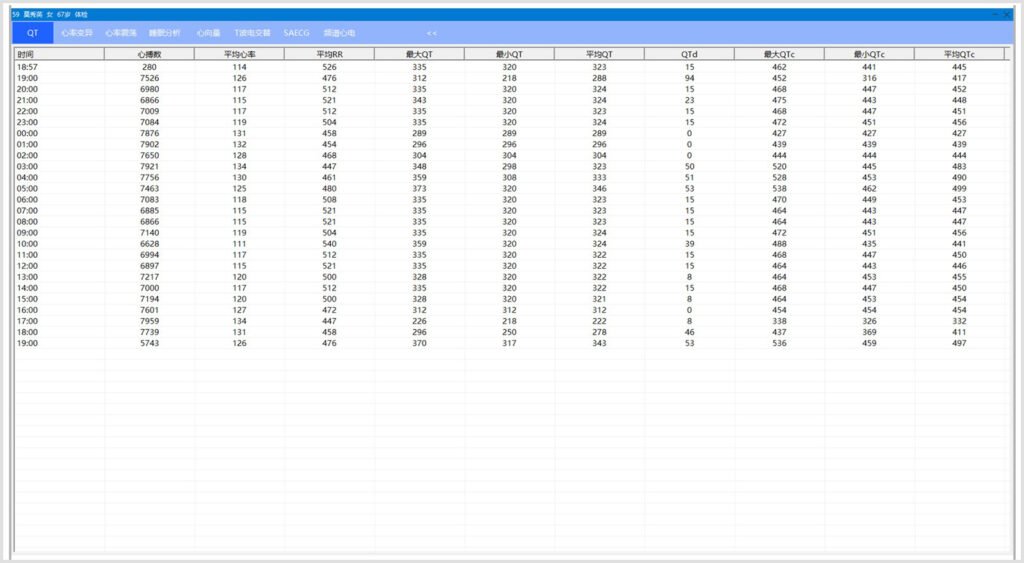

- QT interval waveform measurement function
- Pacemaker analysis function

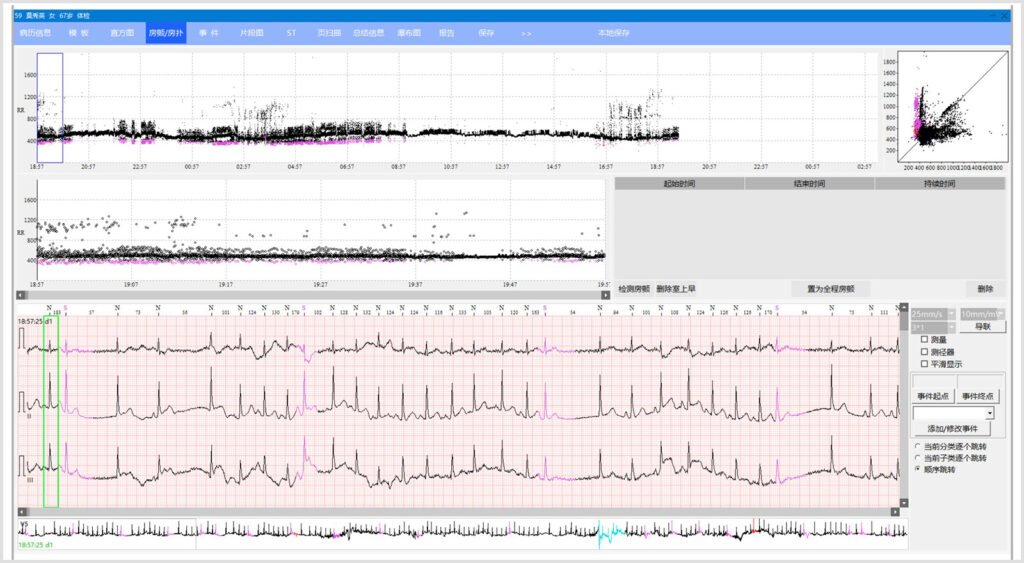

- Heart rate variability analysis
- Timing histogram
- PR trend chart
- Heart rate deceleration analysis
Reaction system
The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system also includes maintenance-free thermostatization of cuvettes through air heating, which eliminates the need for time-consuming servicing of a water bath. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.
Reagent/Sample rotor
respons®240c offers an onboard capacity of up to 36 DiaSys respons® bottles in an refrigerated reagent rotor (2-12°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 36 flexible positions are available for samples/calibrators/controls.
Reagent/Sample probe
The liquid level detection system of the analyzer prevents dry aspiration and ensures in combination with the sample clot detection functions an accurate sample handling. Collision detection protects the probe from damage, while real time inventory monitoring provides a clear overview of remaining tests. Additionally, sample clot detection enhances result reliability.
- Throughput – 240 tests/hour (400 tests/hour incl. optional ISE)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 2-35 μL, 0.1 μL steps
- Reagent/Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- STAT-analytics – Yes
Ion measurement – ISE upgrade kit available
- Barcode identification – Sample, reagent
- Sample tray – 36 samples
- Reagent on board capacity – 34 respons® containers cooled to 2-12°C
- Reaction unit – 80 cuvettes, 8-step auto-washing
- Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
- Photometric linearity and resolution – 0-3.5 OD, 0.0001 OD
- Water consumption – < 6.5 liters per hour
- Dimensions – 86 cm (W) × 66 cm (D) × 55 cm (H)
- Weight – approx. 115 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
Reliability in routine
Compact & Fully-Automated Bench Top Analyzer
Experience laboratory work redefined. respons®420c is a fully automated random access analyzer designed to deliver reliable results with a constant throughput of up to 420 tests per hour (620 tests/hour incl. ISE). Due to its optimal cost-effectiveness and ease of use, it perfectly fits in small to medium sized laboratories.
Features
- Innovative blood pressure measurement technology with measurement accuracy up to 3mmHg.
- Display systolic blood pressure, diastolic blood pressure, pulse, measurement times and other monitoring information on the same screen.
- Built-in body position sensor to record body position and exercise status information. Support automatic retest function.
- Adjustable measurement period: awake, asleep, specific period.
- Support customized monitoring programs for different types of first-test patients. Blood pressure range: systolic 60-280 mmHg, diastolic 25-200 mmHg.
- Heart rate range: 40 - 200 bmp.
- Specification: 118mm x 67mm x 29mm; weight 210g.
- Data transmission: Bluetooth/USB.
- Provide a variety of statistical charts: trend, histogram, pie chart, comparison chart, etc. Blood pressure cuff: curved lined cuff for easy removal, specification (M / L / S).
Analyzing Software
- Microsoft Windows 2003, Windows XP or higher version of Windows.
- Support morning blood pressure index, variability index, arteriosclerosis index analysis.
- Analysis of various blood pressure parameters and statistical results.
- Automatically generate reports in PDF format.
- Support setting of various time interval measurement programs such as day, night, morning, special, etc.

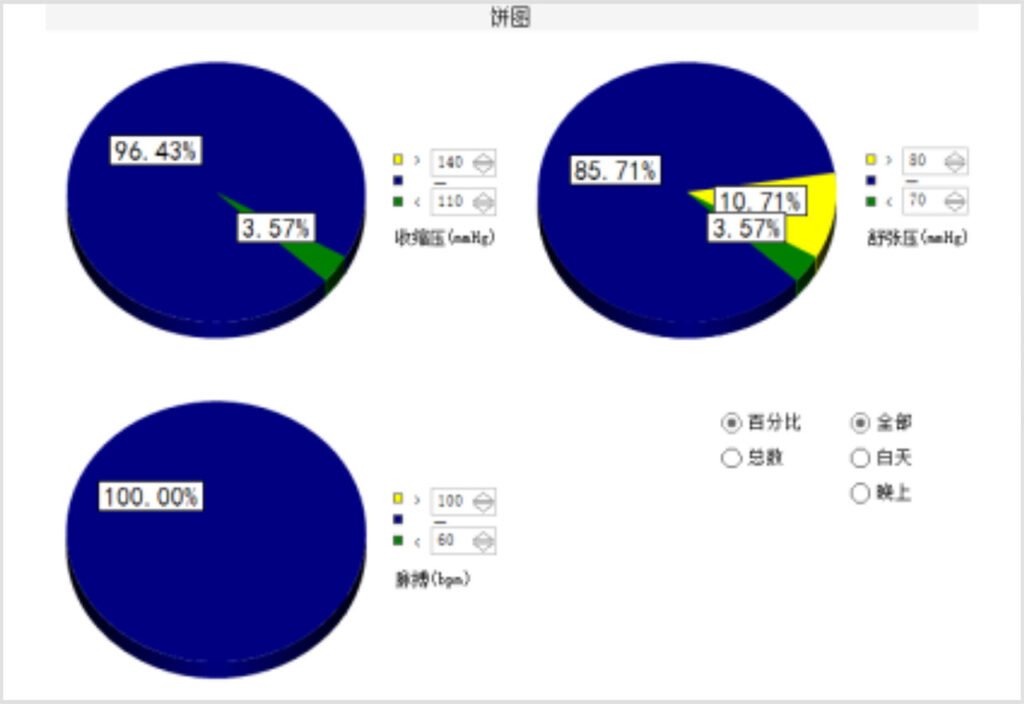

Pie chart
Correlation chart
Trend chart
Histogram
Pie chart
Correlation chart
Trend chart
Histogram
Reaction system
The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system includes maintenance-free thermostatization of the cuvettes by contact heating (metal block), which ensures stable temperature control. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.
Reagent rotor
respons®420c offers an onboard capacity of up to 40 DiaSys respons® bottles in a refrigerated reagent rotor (2-8°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 40 flexible positions are available for samples/calibrators/controls.
Sample rotor
In total 102 positions, including 68 positions (outer ring) with automatic barcode reading and additional 34 positions (inner ring) designated for calibrators (10), controls (9), STAT samples (11), and cleaners (4) are available on the sample rotor. It hosts all major primary tubes and sample cups while ensuring high-priority processing of STAT samples. Additionally, auto dilution and automatic adaptation of the measuring window in case of substrate depletion minimize manual work, reduce rerun costs, and optimize turn around time.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.
- Throughput – 2420 tests/hour (with ISE 620 tests/hour)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 2-45 μL, 0.1 μL steps
- Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- Reagent probe – Liquid level detection, bubble detection and collision protection
- STAT-analytics – Yes
Ion measurement – Optional ISE (Na, K, Cl)
- Barcode identification – Sample, reagent
- Sample tray – 102 positions
- Reagent on board capacity – 40 respons® containers cooled to 2-8°C
- Reaction unit – 93 cuvettes, 8-step auto-washing
- Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
- Photometric linearity and resolution – 0-3.5 OD
- Water consumption – < 20 liters per hour
- Dimensions – 105 cm (W) × 72 cm (D) x 115 cm (H)
- Weight – approx. 200 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
