B&W Ultrasound
Precision in compactness
Compact & Fully-Automated Bench Top Analyzer
Experience efficient and reliable laboratory testing with respons®240c. This fully automated bench top analyzer is perfect for small laboratories since it offers a constant throughput of 240 tests per hour (400 tests/hour incl. optional ISE). Its compact design and user friendly interface provide a valuable asset to any laboratory. Benefit from low operating costs, minimal maintenance and precise results.
- High-resolution medical LED monitor with adjustable angle
- Using dual-wave imaging technology
- Excellent portable model, small size and light weight
- Dual probe interface, all activated, with probe automatic freezing protection function
- Universal knob adjustment, efficient and quick
- One-key full-screen design, the menu can be hidden, making your diagnosis more intuitive and pleasant
- Support a variety of professional measurement software packages
- Lithium battery, trolley and outpatient box are optional, easy to carry
- Support multiple data interfaces
- Support laser printing module, directly connect laser printer to output report

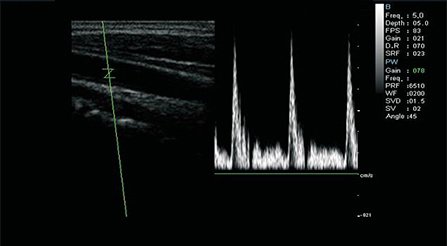

- Support PW function,can provide more information of hemodynamics.
Excellent Clinical Images
Reaction system
The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system also includes maintenance-free thermostatization of cuvettes through air heating, which eliminates the need for time-consuming servicing of a water bath. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.
Reagent/Sample rotor
respons®240c offers an onboard capacity of up to 36 DiaSys respons® bottles in an refrigerated reagent rotor (2-12°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 36 flexible positions are available for samples/calibrators/controls.
Reagent/Sample probe
The liquid level detection system of the analyzer prevents dry aspiration and ensures in combination with the sample clot detection functions an accurate sample handling. Collision detection protects the probe from damage, while real time inventory monitoring provides a clear overview of remaining tests. Additionally, sample clot detection enhances result reliability.
- Throughput – 240 tests/hour (400 tests/hour incl. optional ISE)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 2-35 μL, 0.1 μL steps
- Reagent/Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- STAT-analytics – Yes
Ion measurement – ISE upgrade kit available
- Barcode identification – Sample, reagent
- Sample tray – 36 samples
- Reagent on board capacity – 34 respons® containers cooled to 2-12°C
- Reaction unit – 80 cuvettes, 8-step auto-washing
- Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
- Photometric linearity and resolution – 0-3.5 OD, 0.0001 OD
- Water consumption – < 6.5 liters per hour
- Dimensions – 86 cm (W) × 66 cm (D) × 55 cm (H)
- Weight – approx. 115 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
