Seamaty SD1
SD1 Dry Chemistry Analyzer
Compact & Fully-Automated Bench Top Analyzer
SD1 Dry Chemistry Analyzer

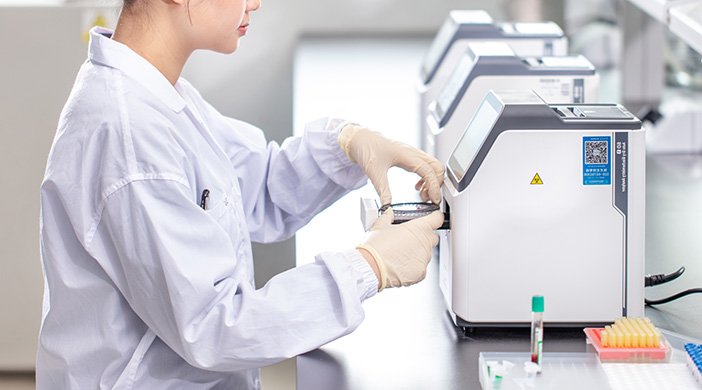

Seamaty SD1 is a fully automated chemistry analyzer designed for the on-site testing. It can provide faster, easier, more accurate medical diagnosis using 0.1cc of whole blood, serum or plasma. With built-in centrifuge, QR code , real-time quality control, SD1 can provide faster, easier, more accurate medical diagnosis. The test results will be automatically printed after 12 minutes.
Step 1
Add sample
Step 2
Insert panel
Step 3
Read result
Product Feature
Small sample required
Only 100ul sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.
Easy to use
No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.
Accuracy
Adopt the photoelectric colorimetric principle with built-in real-time quality control system to ensure the accuracy of analysis.
Quick result
It is real-time test and you could read the test report in 12 minutes, which greatly shortens the waiting time for patients.
Automated and smart
It is fully automated with features of online fault diagnosis, upgrading, to help you know the operation of the instrument in real time.
Minimal maintenance
There are no easy-wearing parts such as liquid circuit, pump valve, etc., and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.
Product Video
Specifications
Lithium Heparin Anticoagulant whole blood, serum and plasma
90-120ul
QR Code
12 minutes/sample
Absorption spectroscopy, transmission turbidimetry
Endpoint, kinetic, fixed time, turbidimetry, etc
Endpoint, kinetic, fixed time, turbidimetry, etc
Sample Type – Lithium Heparin Anticoagulant whole blood, serum and plasma
Sample Volume – 90-120ul
Bar Code – QR Code
Testing Time – 12 minutes/sample
Testing Principle – Absorption spectroscopy, transmission turbidimetry
Testing Method – Endpoint, kinetic, fixed time, turbidimetry, etc
Temperature – 37±0.3℃
Resolution – 0.001 Abs
Cross Contamination – 0
QC & Calibrate – Intelligent QC
Working Condition – Temperature:10-30℃ Humidity: 30%-70%
Light Source – 12V/20W, halogen tungsten lamp with lifespanover 2500 hours
Power Supply – Input: AC 220V, 50Hz
Power Rating – 120VA
Optical System – After the filter spectral, 8 wavelength synchronous detection: 340, 405, 450, 505, 546, 600, 630, 850nm
Display – Android 7.0 inch 800*480, multi-point capacitive touch screen
Storage – 500,000 results
Printer – Built-in thermal printer
Connectors – 4 USB ports, 1 LAN port
Net Weight – 4.6 Kg
Dimension (L*W*H) – 200mm*252mm*299mm
Chemistry Reagent Disc
The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.
