Dymind Hematology
System
DH-800
AI Technology, Automcatic, Comprehensive
Equipped with advanced AI Technology, DH-800 offers automatic and comprehensive capabilities for detecting abnormal WBC/RBC/PLT,used in RET, NRBC, and body fluids tests, to meet the diverse demands of different end-users.
It’s an ideal choice for public hospitals, oncology centers, and Ministry of Health institutions, ensuring precise and efficient hematology diagnosis.

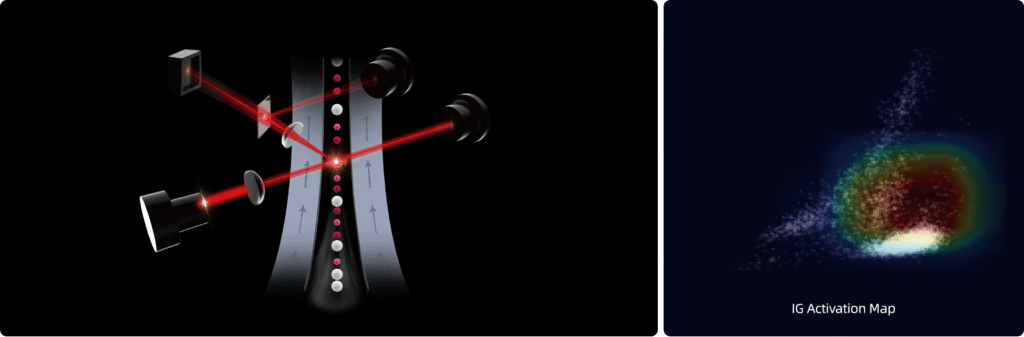

Advanced AI technology for WBC
- Enhance the accuracy of flagging for Blast/IG.
- Comprehensive and logical AI analysis procedure for common leukemia such as AML&ALL.

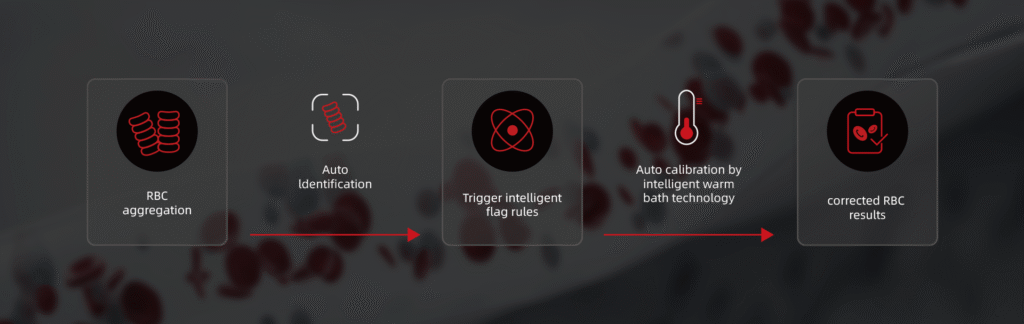

Upgraded anti-interference solution for RBC
- Provide intelligent flagging rules for RBC aggregation.
- Auto result correction with warm bath technology reduces interference by RBC aggregation.
Comprehensive solution for PLT

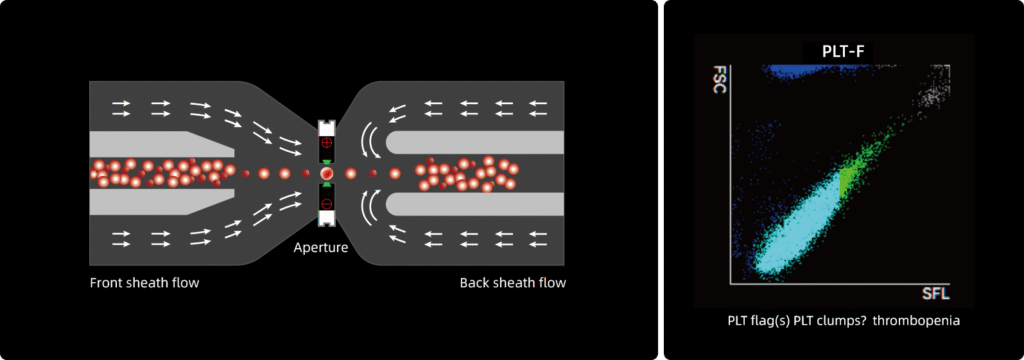

- The new sheath flow impedance method decreases the interference by microcytes and large PLT.
- Dedicated PLT de-clump technology ameliorates the PLT aggregation issues greatly.
- Powerful PLT-F channel avoids interference by cell debris further.
110T/H
Throughput
≥300,00
Data Storage
Unprecedented automation of daily operation and maintenance
High-efficient operation experience
- High-efficient operation experience
- 15.6-inch touch screen for the ultimate interactive experience

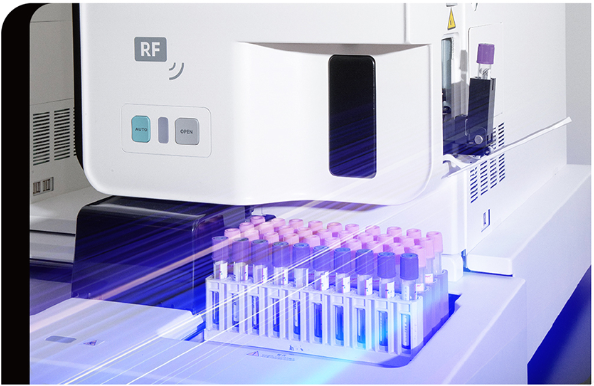

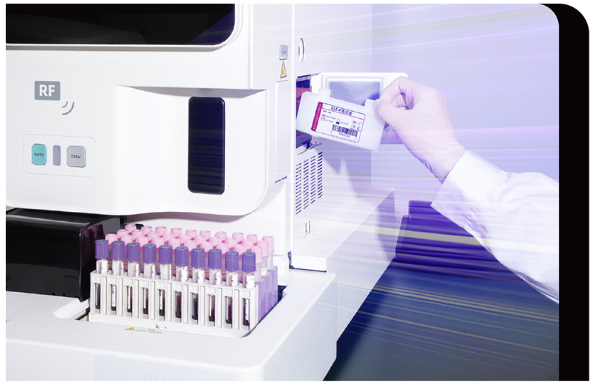

- Loading for whole blood and capillary blood tubes simultaneously are available
Various and flexible sampling modes
- Pioneer three-dimensional sampling modes including one automatic mode and two STAT modes
- Q-button for switching common mode enhance operation efficiency
Step 1
Add sample
Step 2
Insert panel
Step 3
Read result
Product Feature
Small sample required
Only 100ul sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.
Easy to use
No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.
Accuracy
Adopt the photoelectric colorimetric principle with built-in real-time quality control system to ensure the accuracy of analysis.
Quick result
It is real-time test and you could read the test report in 12 minutes, which greatly shortens the waiting time for patients.
Automated and smart
It is fully automated with features of online fault diagnosis, upgrading, to help you know the operation of the instrument in real time.
Minimal maintenance
There are no easy-wearing parts such as liquid circuit, pump valve, etc., and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.
Product Video
Specifications
Lithium Heparin Anticoagulant whole blood, serum and plasma
90-120ul
QR Code
12 minutes/sample
Absorption spectroscopy, transmission turbidimetry
Endpoint, kinetic, fixed time, turbidimetry, etc
Endpoint, kinetic, fixed time, turbidimetry, etc
Sample Type – Lithium Heparin Anticoagulant whole blood, serum and plasma
Sample Volume – 90-120ul
Bar Code – QR Code
Testing Time – 12 minutes/sample
Testing Principle – Absorption spectroscopy, transmission turbidimetry
Testing Method – Endpoint, kinetic, fixed time, turbidimetry, etc
Temperature – 37±0.3℃
Resolution – 0.001 Abs
Cross Contamination – 0
QC & Calibrate – Intelligent QC
Working Condition – Temperature:10-30℃ Humidity: 30%-70%
Light Source – 12V/20W, halogen tungsten lamp with lifespanover 2500 hours
Power Supply – Input: AC 220V, 50Hz
Power Rating – 120VA
Optical System – After the filter spectral, 8 wavelength synchronous detection: 340, 405, 450, 505, 546, 600, 630, 850nm
Display – Android 7.0 inch 800*480, multi-point capacitive touch screen
Storage – 500,000 results
Printer – Built-in thermal printer
Connectors – 4 USB ports, 1 LAN port
Net Weight – 4.6 Kg
Dimension (L*W*H) – 200mm*252mm*299mm
Chemistry Reagent Disc
The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.
