Diasys Respons A1C

SD1 Dry Chemistry Analyzer

Compact & Fully-Automated Bench Top Analyzer

One step HbA1c analyzer

respons®A1c is an easy-to-use analyzer for reliable and rapid determination of HbA1c from capillary blood using boronate affinity chromatography.



Step 1

Add sample

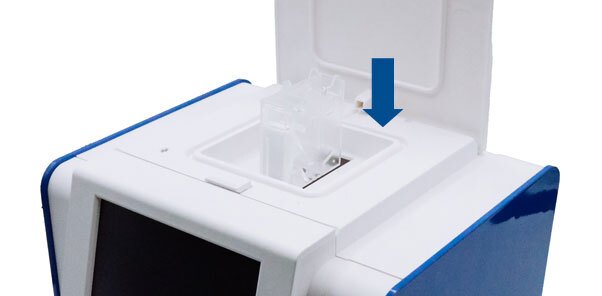

Step 2

Insert panel

Step 3

Read result

Download Brochure

Product Feature

Small sample required

Only 100ul sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.

Easy to use

No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.

Accuracy

Adopt the photoelectric colorimetric principle with built-in real-time quality control system to ensure the accuracy of analysis.

For More Details

Quick result

It is real-time test and you could read the test report in 12 minutes, which greatly shortens the waiting time for patients.

Automated and smart

It is fully automated with features of online fault diagnosis, upgrading, to help you know the operation of the instrument in real time.

Minimal maintenance

There are no easy-wearing parts such as liquid circuit, pump valve, etc., and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.

Product Video

Specifications

Lithium Heparin Anticoagulant whole blood, serum and plasma

90-120ul

QR Code

12 minutes/sample

Absorption spectroscopy, transmission turbidimetry

Endpoint, kinetic, fixed time, turbidimetry, etc

Endpoint, kinetic, fixed time, turbidimetry, etc

  • Sample Type – Lithium Heparin Anticoagulant whole blood, serum and plasma

  • Sample Volume – 90-120ul

  • Bar Code – QR Code

  • Testing Time – 12 minutes/sample

  • Testing Principle – Absorption spectroscopy, transmission turbidimetry

  • Testing Method – Endpoint, kinetic, fixed time, turbidimetry, etc

  • Temperature – 37±0.3℃

  • Resolution – 0.001 Abs

  • Cross Contamination – 0

  • QC & Calibrate – Intelligent QC

  • Working Condition – Temperature:10-30℃ Humidity: 30%-70%

  • Light Source – 12V/20W, halogen tungsten lamp with lifespanover 2500 hours

  • Power Supply – Input: AC 220V, 50Hz

  • Power Rating – 120VA

  • Optical System – After the filter spectral, 8 wavelength synchronous detection: 340, 405, 450, 505, 546, 600, 630, 850nm

  • Display – Android 7.0 inch 800*480, multi-point capacitive touch screen

  • Storage – 500,000 results

  • Printer – Built-in thermal printer

  • Connectors – 4 USB ports, 1 LAN port

  • Net Weight – 4.6 Kg

  • Dimension (L*W*H) – 200mm*252mm*299mm

respons®A1c is an easy-to-use analyzer for reliable and rapid determination of HbA1c from capillary blood using boronate affinity chromatography.

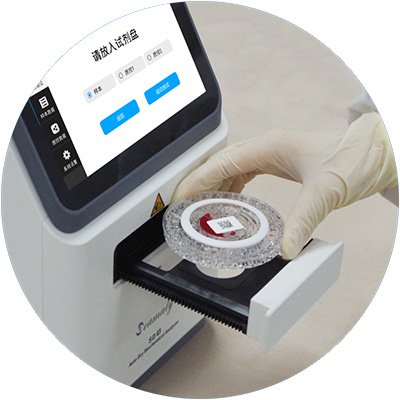

Chemistry Reagent Disc

The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.

Versatile and flexible
Easy to use
Competitive and unique
For More Details

Convenient testing

With just 3.5 µL of blood, respons®A1c delivers reliable HbA1c results after only 4.5 minutes. The testing is performed with a unit-dose cartridge consisting of a reagent pack with integrated capillary and a cassette, both packed in an aluminum pouch. Just insert the pre-calibrated cassette into the analyzer, take the blood sample from a finger prick with the reagent pack and insert it into the analyzer.

Convenient testing

  • Test method – Boronate affinity chromatography

  • Cartridge – Pre-calibrated unit dose system

  • Measuring range – 4.0 – 15.0% DCCT (9 – 140 mmol/mol IFCC)

  • Hematocrit range – 22.5 – 60%

  • Test time – 4 minutes 30 seconds

  • Precision (within series) (20 days, two analyzers, three lots) – 2.6% at 5.4% DCCT,
    1.9% at 9.0% DCCT

  • Sample volume – 3.5 µL

  • Shelf life – 18 months from date of production

  • Storage conditions – 2 – 30°C

  • User interface – 4.3” colored touch screen, voice guidance during test

  • Test Memory – 400 results

  • Printer – Integrated thermal printer

  • Operating conditions – 17 – 37°C; 15 – 75% RH

  • Storage conditions – 10 – 60°C; 15 – 75% RH

  • Connectivity – 1 x USB-A, 1 x USB-B, 1 x Ethernet

  • Weight – 1.6 kg

  • Dimension – 205 (W) x 200 (L) x 150 (H) mm

  • Power Supply – 100/240VAC 12VDC, 3.33A

Cat. Number        Description

  1. 963100          respons®A1c analyzer
  2. 963207         respons®A1c Hemoglobin A1c Test Kit, 10 tests
