Diasys Biochemistry
C LINE
Precision in compactness
Compact & Fully-Automated Bench Top Analyzer
Experience efficient and reliable laboratory testing with respons®240c. This fully automated bench top analyzer is perfect for small laboratories since it offers a constant throughput of 240 tests per hour (400 tests/hour incl. optional ISE). Its compact design and user friendly interface provide a valuable asset to any laboratory. Benefit from low operating costs, minimal maintenance and precise results.
Reaction system
The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system also includes maintenance-free thermostatization of cuvettes through air heating, which eliminates the need for time-consuming servicing of a water bath. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.

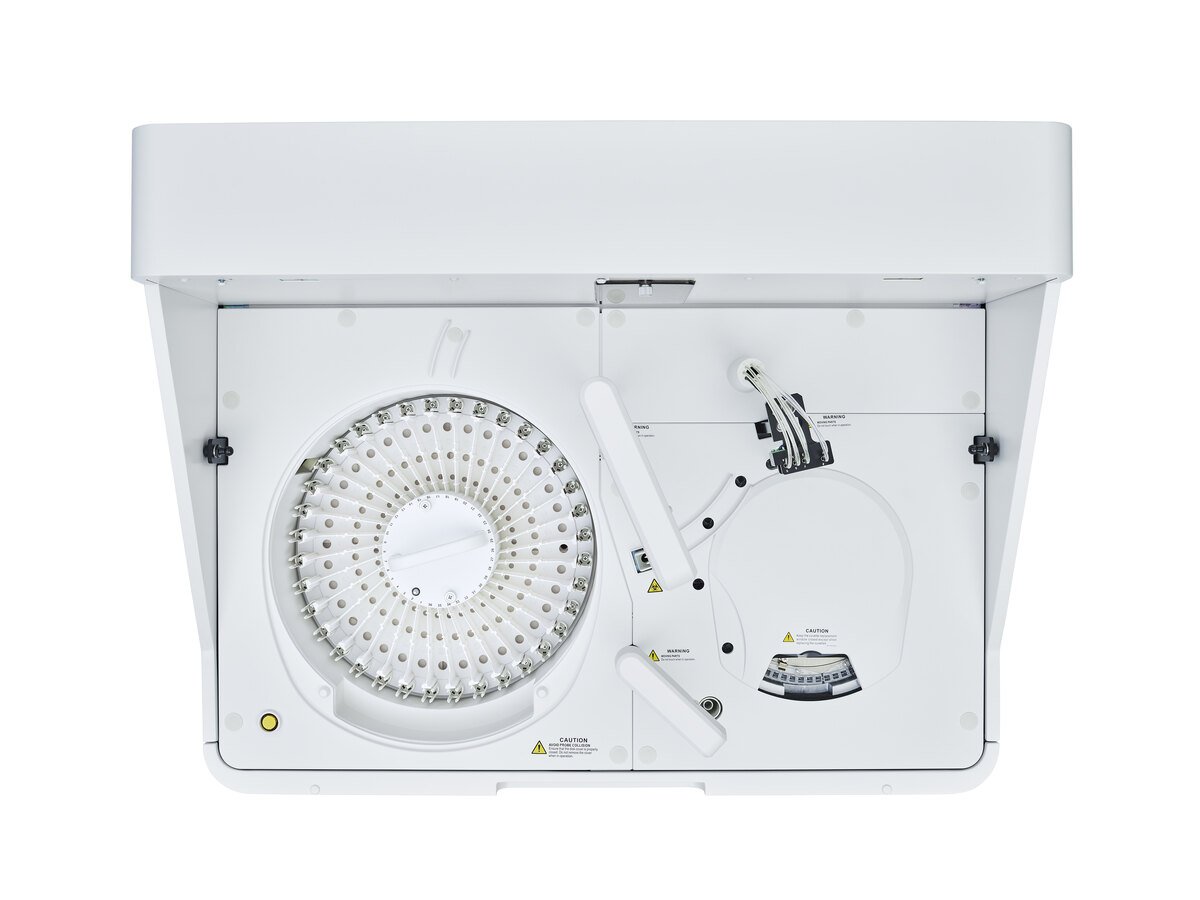

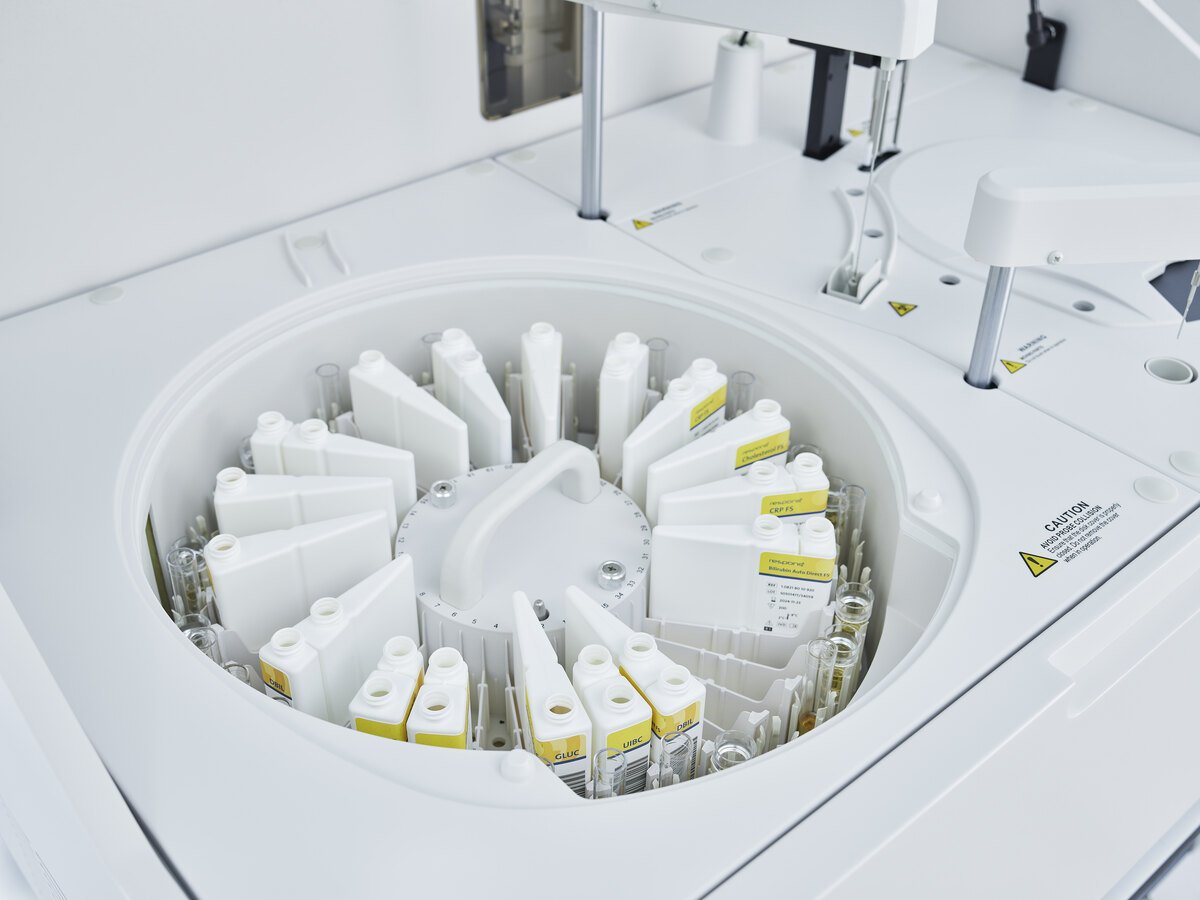

Reagent/Sample rotor
respons®240c offers an onboard capacity of up to 36 DiaSys respons® bottles in an refrigerated reagent rotor (2-12°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 36 flexible positions are available for samples/calibrators/controls.

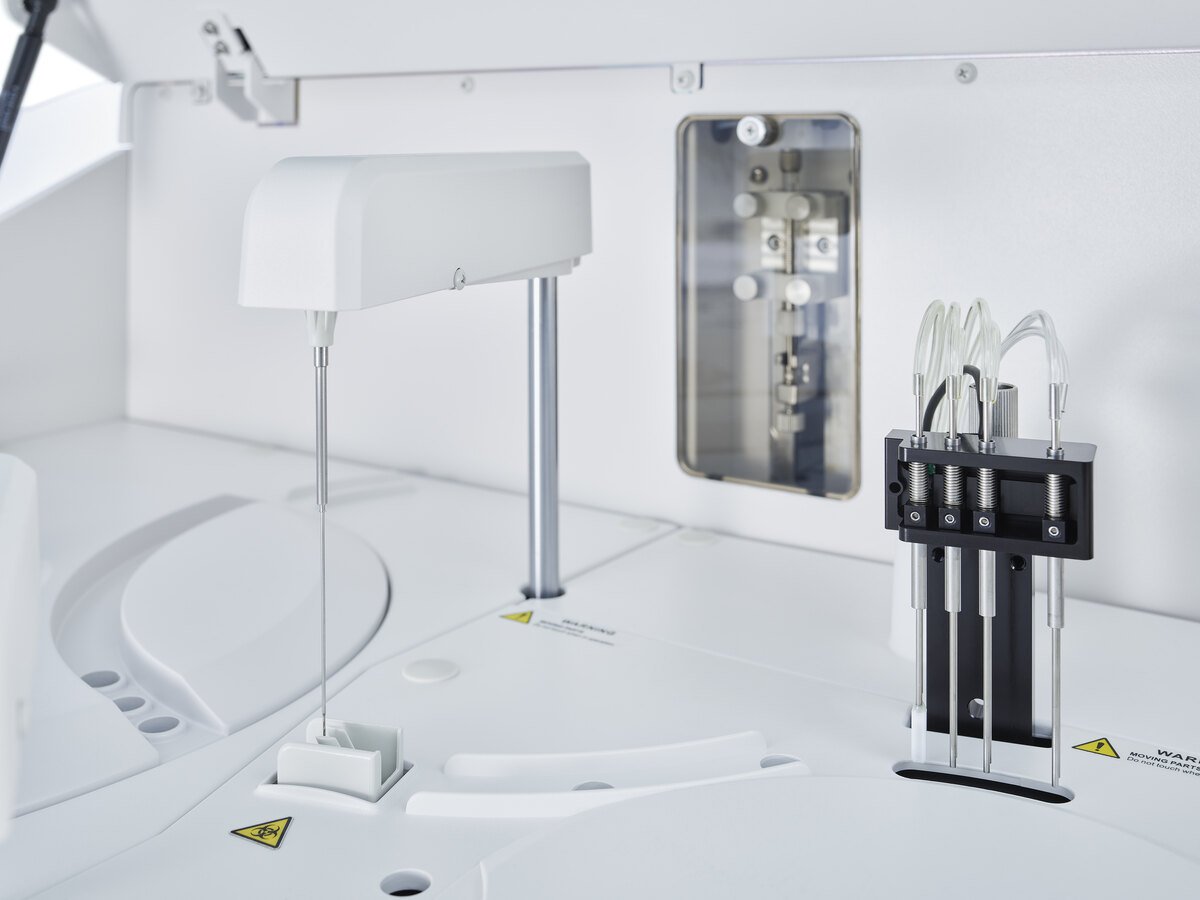

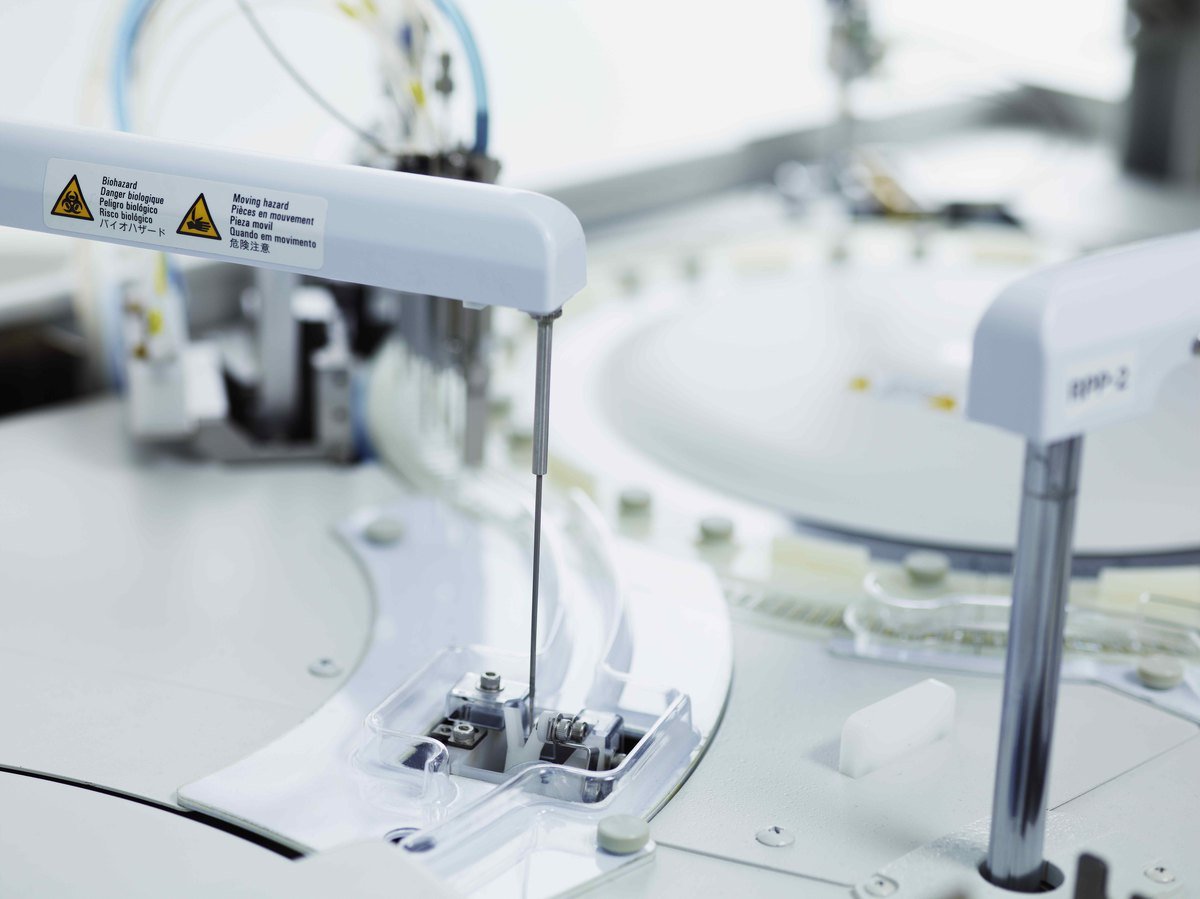

Reagent/Sample probe
The liquid level detection system of the analyzer prevents dry aspiration and ensures in combination with the sample clot detection functions an accurate sample handling. Collision detection protects the probe from damage, while real time inventory monitoring provides a clear overview of remaining tests. Additionally, sample clot detection enhances result reliability.
- Throughput – 240 tests/hour (400 tests/hour incl. optional ISE)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 2-35 μL, 0.1 μL steps
- Reagent/Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- STAT-analytics – Yes
Ion measurement – ISE upgrade kit available
- Barcode identification – Sample, reagent
- Sample tray – 36 samples
- Reagent on board capacity – 34 respons® containers cooled to 2-12°C
- Reaction unit – 80 cuvettes, 8-step auto-washing
- Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
- Photometric linearity and resolution – 0-3.5 OD, 0.0001 OD
- Water consumption – < 6.5 liters per hour
- Dimensions – 86 cm (W) × 66 cm (D) × 55 cm (H)
- Weight – approx. 115 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
Reliability in routine
Compact & Fully-Automated Bench Top Analyzer
Experience laboratory work redefined. respons®420c is a fully automated random access analyzer designed to deliver reliable results with a constant throughput of up to 420 tests per hour (620 tests/hour incl. ISE). Due to its optimal cost-effectiveness and ease of use, it perfectly fits in small to medium sized laboratories.
Reaction system
The grated photometer is designed for maintenance-free operation, featuring 12 wavelengths to ensure precise and reliable measurements. With a broad photometric linearity of up to 3.5 OD, it minimizes the need for repetitions and thus increases efficiency and accuracy. The system includes maintenance-free thermostatization of the cuvettes by contact heating (metal block), which ensures stable temperature control. Additionally, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.

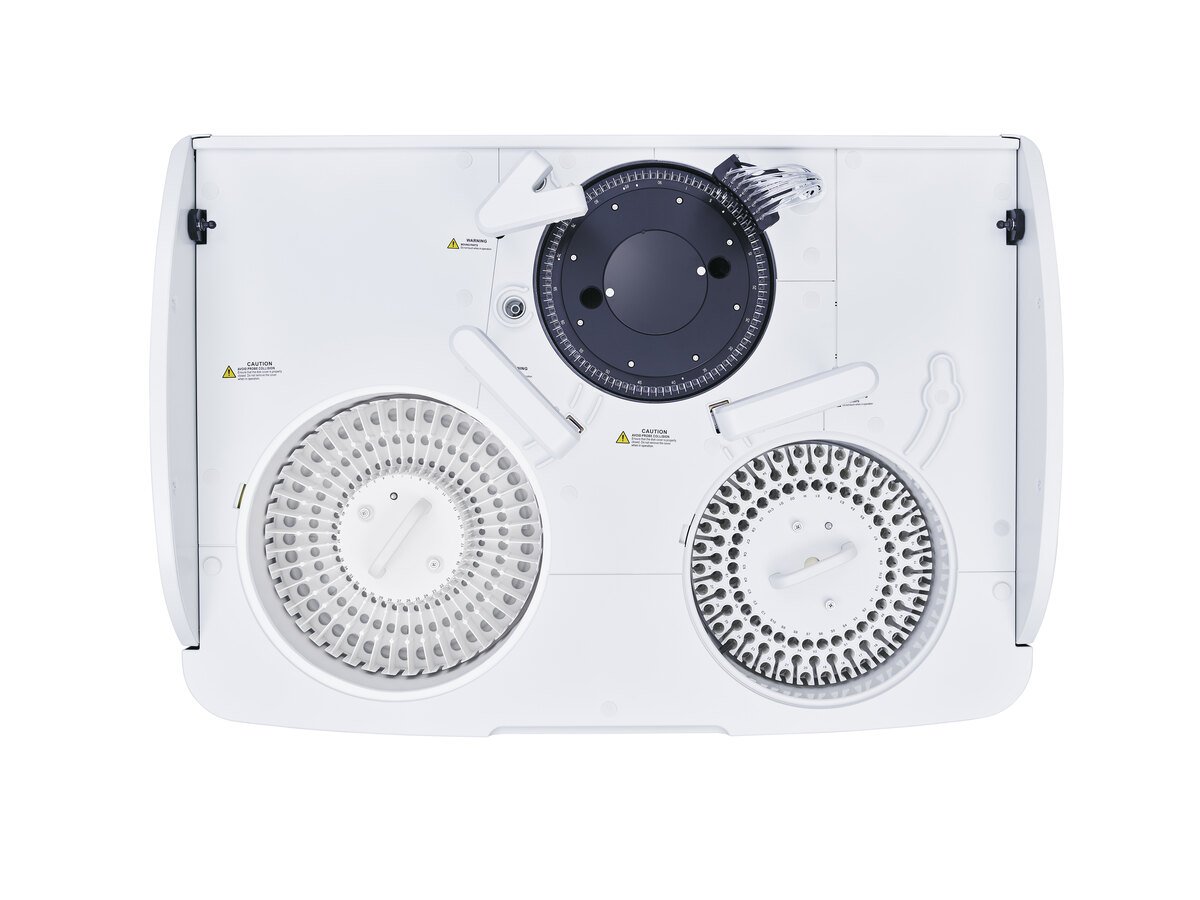

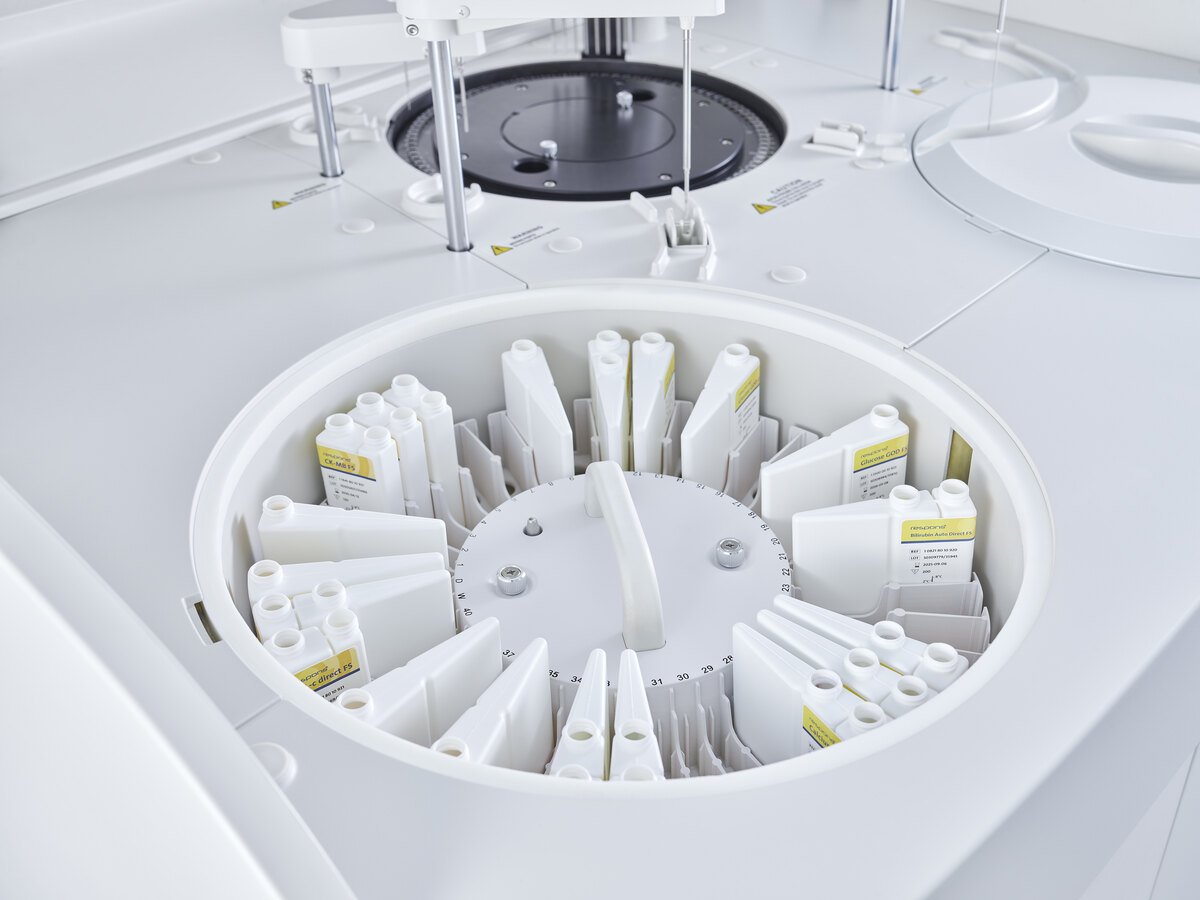

Reagent rotor
respons®420c offers an onboard capacity of up to 40 DiaSys respons® bottles in a refrigerated reagent rotor (2-8°C). In combination with the dedicated respons® bottles, a convenient one grip loading also for two component reagents is ensured. Additionally, 40 flexible positions are available for samples/calibrators/controls.
Sample rotor
In total 102 positions, including 68 positions (outer ring) with automatic barcode reading and additional 34 positions (inner ring) designated for calibrators (10), controls (9), STAT samples (11), and cleaners (4) are available on the sample rotor. It hosts all major primary tubes and sample cups while ensuring high-priority processing of STAT samples. Additionally, auto dilution and automatic adaptation of the measuring window in case of substrate depletion minimize manual work, reduce rerun costs, and optimize turn around time.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.
- Throughput – 2420 tests/hour (with ISE 620 tests/hour)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 2-45 μL, 0.1 μL steps

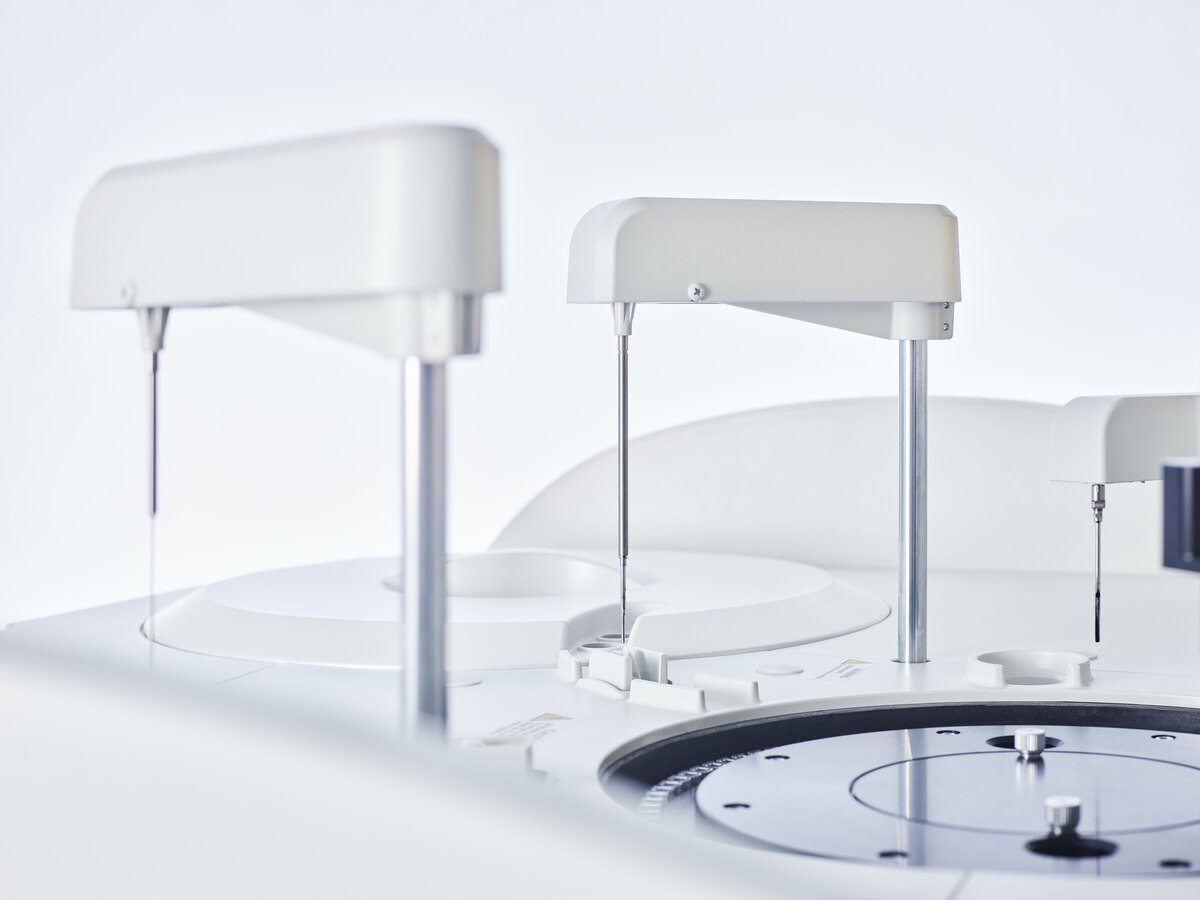

- Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- Reagent probe – Liquid level detection, bubble detection and collision protection
- STAT-analytics – Yes

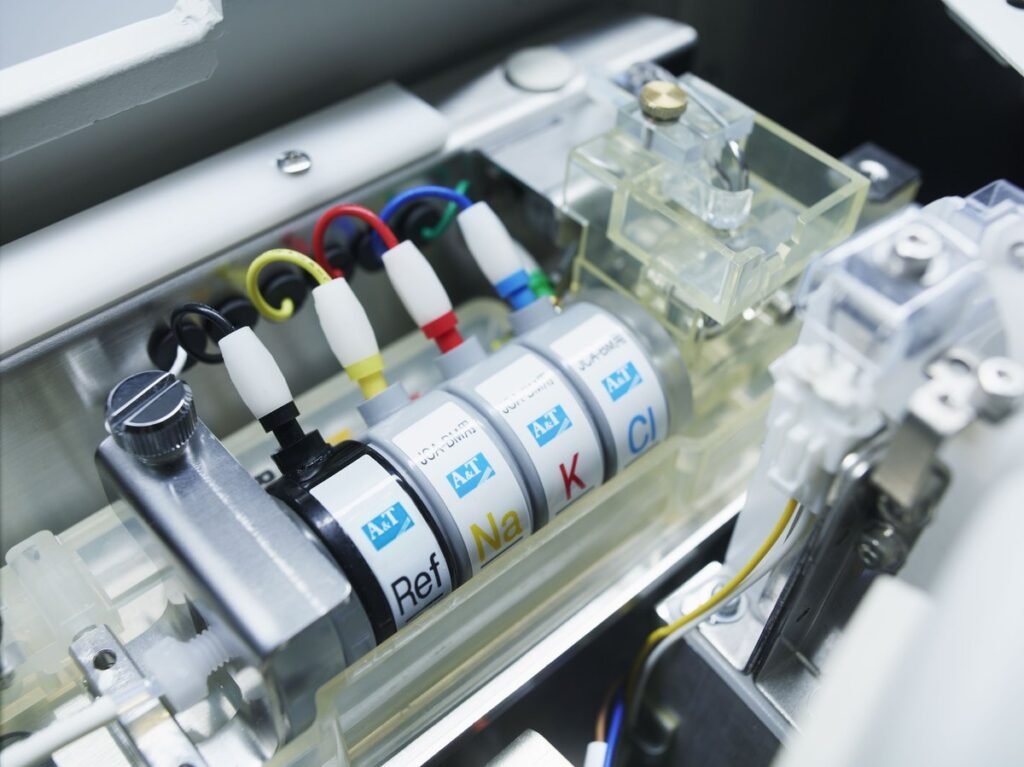

Ion measurement – Optional ISE (Na, K, Cl)
- Barcode identification – Sample, reagent
- Sample tray – 102 positions
- Reagent on board capacity – 40 respons® containers cooled to 2-8°C
- Reaction unit – 93 cuvettes, 8-step auto-washing
- Photometry – Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
- Photometric linearity and resolution – 0-3.5 OD
- Water consumption – < 20 liters per hour
- Dimensions – 105 cm (W) × 72 cm (D) x 115 cm (H)
- Weight – approx. 200 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
Work automation in perfection
Compact & Fully-Automated Bench Top Analyzer

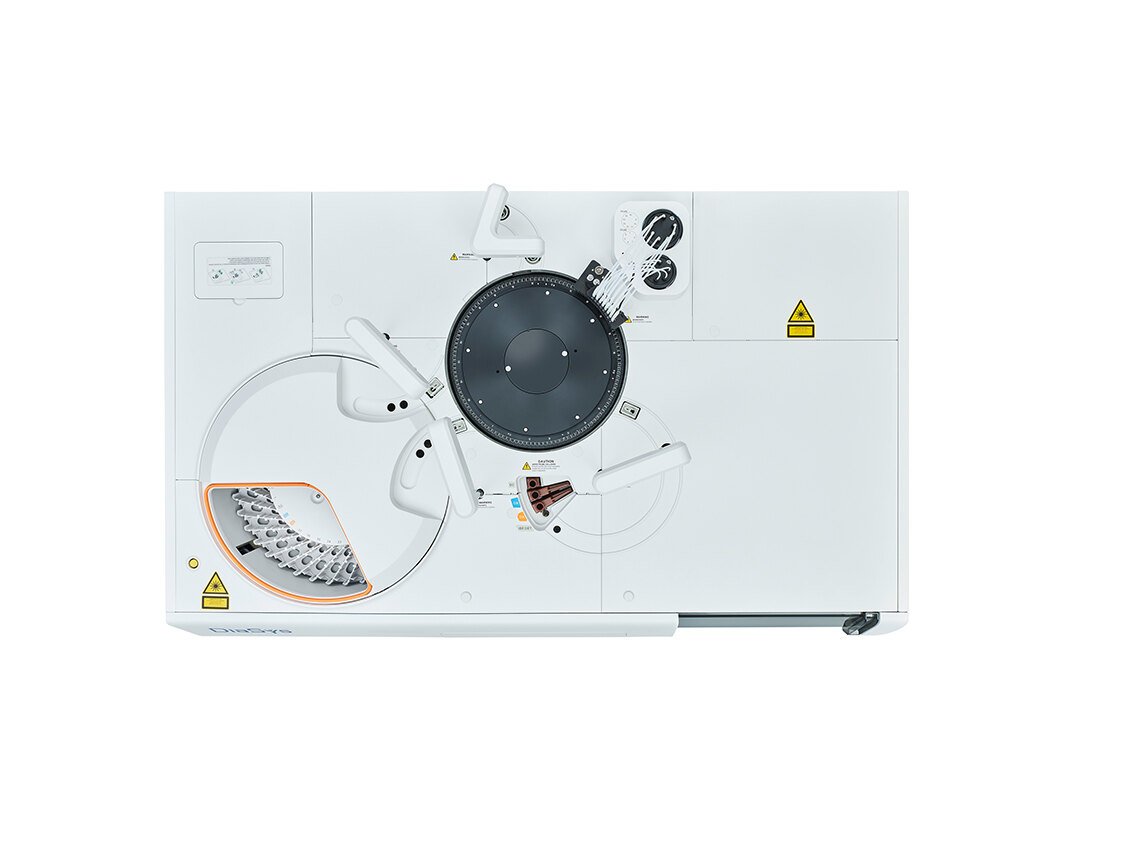

respons®600c is a fully automated random access analyzer designed to deliver efficient and reliable performance in medium sized laboratories. With a constant throughput of up to 600 tests per hour (800 tests/hour incl. ISE) this compact system is capable of handling demanding workloads. Featuring a flexible rack loader holding up to 120 samples, low reaction volumes, a maintenance-free photometer and intuitive software, respons®600c offers optimal cost-effectiveness and ease of use.

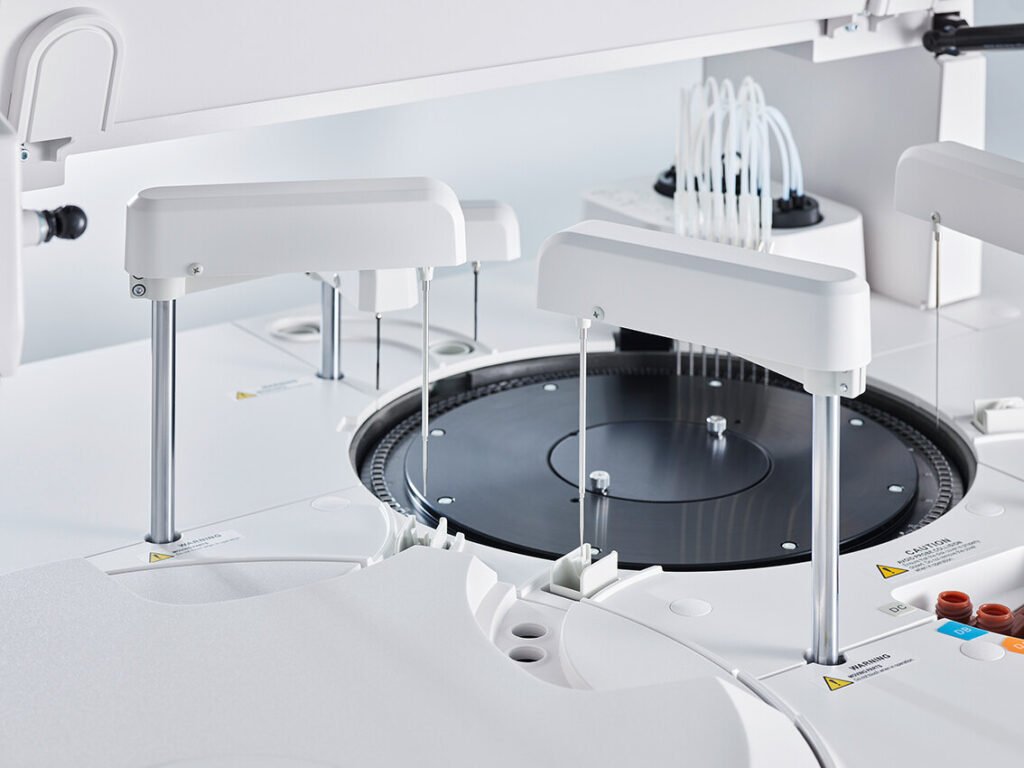

Reaction system
The grating photometer has 16 wavelengths for maintenance-free operation and ensures precise and reliable measurements. With a wide photometric linearity of up to 3.5 OD, it minimizes the need for reruns and increases efficiency. The system includes maintenance-free thermostatization of the cuvettes by contact heating (metal block), which ensures stable temperature control. In addition, the twin test functionality supports the DiaSys HbA1c net FS assay, optimizing performance for specific diagnostic applications.
Advanced HbA1c testing
The system features fully automated onboard hemolyzation of whole blood samples, avoiding time-consuming and error-prone manual sample preparation. HbA1c smart sampling ensures efficient aspiration of erythrocytes even in samples with higher sedimentation rate by sampling at the bottom of the tube. After processing a whole blood sample, a deep washing of the sample probe minimizes carryover, enhancing accuracy and reliability.
Reagent rotor
respons®600c features a refrigerated reagent rotor (2-8°C) to ensure optimal storage conditions. It supports an onboard capacity of up to 37 DiaSys respons® reagent bottles. Convenient one grip loading of respons® bottles, including two-component reagents, eliminates the risk of misplacement. Due to the intelligent design of respons®600c, reagents can be load continuously during the run which enhances efficiency and shortens turn around time.

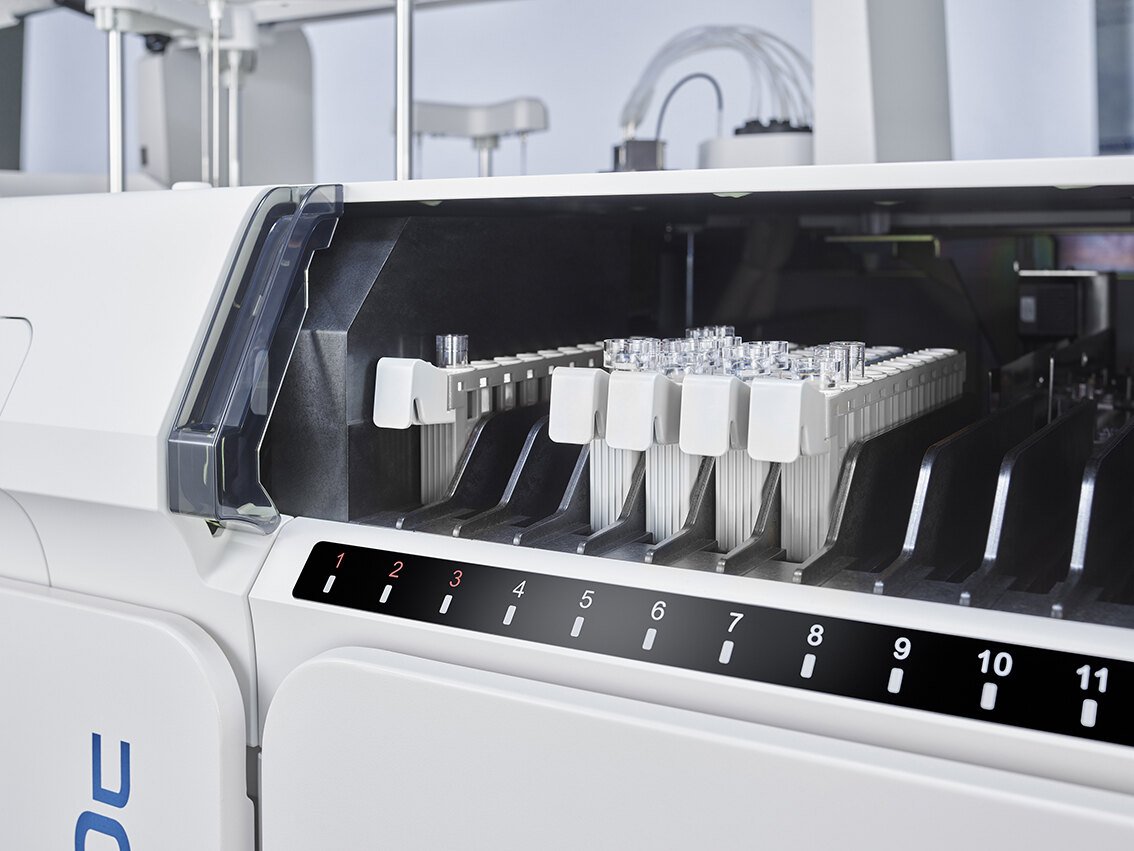

Automation
The analyzer is equipped with an integrated rack loader with continuous sample loading. With a total of 120 sample positions, including up to 30 STAT positions, it allows for high-throughput processing and extended walk-away time. Intelligent rerun and smart dilution functions optimize the workflow. The system offers a wake-up time of just 10 minutes, with a programmable start time. Additionally, HIL sample management ensures reliable result interpretation, and the integrated ISE provides exceptional onboard stability for up to nine months.
- Throughput – 600 tests/hour (with ISE 800 tests/hour)
- Sample types – Serum, plasma, urine, whole blood
- Sample volume – 1.5-45 μL, 0.1 μL steps
- Sample probe – Liquid level detection, clot detection and collision protection
- Reagent pipetting – 10-200 μL, 0.5 μL steps
- Reagent probe – Liquid level detection, bubble detection and collision protection
- STAT-analytics – Yes, 3 racks
Ion measurement – Integrated ISE (Na, K, Cl)
- Barcode identification – Sample, reagent
- Sample tray – 120 samples by 12 racks
- Reagent on board capacity – 37 respons® containers cooled to 2-8°C
- Reaction unit – 124 cuvettes, 8-step auto-washing
- Photometry – Grating system, 16 wavelengths (340, 380, 412, 450, 480, 505, 546, 570, 605, 630, 660, 700, 740, 770, 800 and 850)
- Photometric linearity – 0-3.5 OD
- Water consumption – < 25 liters per hour
- Dimensions – 138 cm (W) x 86 cm (D) x 120 cm (H)
- Weight – aapprox. 350 kg
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
Part Auto Hematology Analyzer
Compact & Fully-Automated Bench Top Analyzer
- Efficient testing with precision reference laboratory quality results
- Compatibility with two modes of sampling and various printing options
- User-friendly with auto-cleaning of sample probe and tubes and automatic fault processing function
- Low consumption of only three reagents and ≤20uL of sample
- Lightweight design for easy portability
– 2 Reagents
– 21 Parameters
– 60 Samples/hour
– Low consumption of reagent and sample
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
Part Auto Hematology Analyzer
Compact & Fully-Automated Bench Top Analyzer
- Efficient testing with precision reference laboratory quality results
- Compatibility with two modes of sampling and various printing options
- User-friendly with auto-cleaning of sample probe and tubes and automatic fault processing function
- Low consumption of only three reagents and ≤20uL of sample
- Lightweight design for easy portability
– 2 Reagents
– 21 Parameters
– 60 Samples/hour
– Low consumption of reagent and sample
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
Part Auto Hematology Analyzer
Compact & Fully-Automated Bench Top Analyzer
- Efficient testing with precision reference laboratory quality results
- Compatibility with two modes of sampling and various printing options
- User-friendly with auto-cleaning of sample probe and tubes and automatic fault processing function
- Low consumption of only three reagents and ≤20uL of sample
- Lightweight design for easy portability
– 2 Reagents
– 21 Parameters
– 60 Samples/hour
– Low consumption of reagent and sample
BioMajesty® JCA-BM6010/C
The BioMajesty® JCA-BM6010/C is designed to increase the performance of medium-sized laboratories. It is also the ideal system for speciality laboratories. The throughput of up to 1.200 tests/hour, 45 reagent and 84 sample positions are guarantee for the flexibility in everyday use. It handles a full menue of photometric and immunoturbidimetric assays as well as Na, K, Cl determination by indirect ISE methods.
Optimized workflows
Special emphasis has been spent on the software to combine highest user friendliness with optimally secured results. A special feature is the integrated on-board hemolysis function for optimized HbA1c determination. Dynamic range extension makes additional dilutions superfluous and a dedicated STAT port allows for immediate STAT processing. Clot detection and liquid level sensor technology ensures confidence in results.
Patient friendly
The analyzer works with very small sample volumes, making it the perfect instrument in pediatric and geriatric settings.
Economic
The BioMajesty® JCA-BM6010/C is a system with one of the smallest footprint in its class hence saving precious laboratory space. DiaSys supplies ready-to-use reagents well known for their excellent on-board stability with the instrument. The result in conjunction with extremely low reagent consumption is cost efficiency on the highest order.
- System type – Floor stand random access clinical chemistry analyzer
- Total throughput – 1200 tests/hour
- Sample tray STT – 84 positions for routine and priority samples with built-in barcode reader
- Refrigerated sample tray CTT – 61 positions for controls and calibrators
- Sample types – Serum, plasma, CSF, urine, whole blood
- Reagent trays – Two refrigerated trays with 45 positions each for reagent containers with built-in barcode reader
- Sample dispensing volume – 1-25 µL (0.1 µL step)
Reagent pipetting – 5 to 300 µL

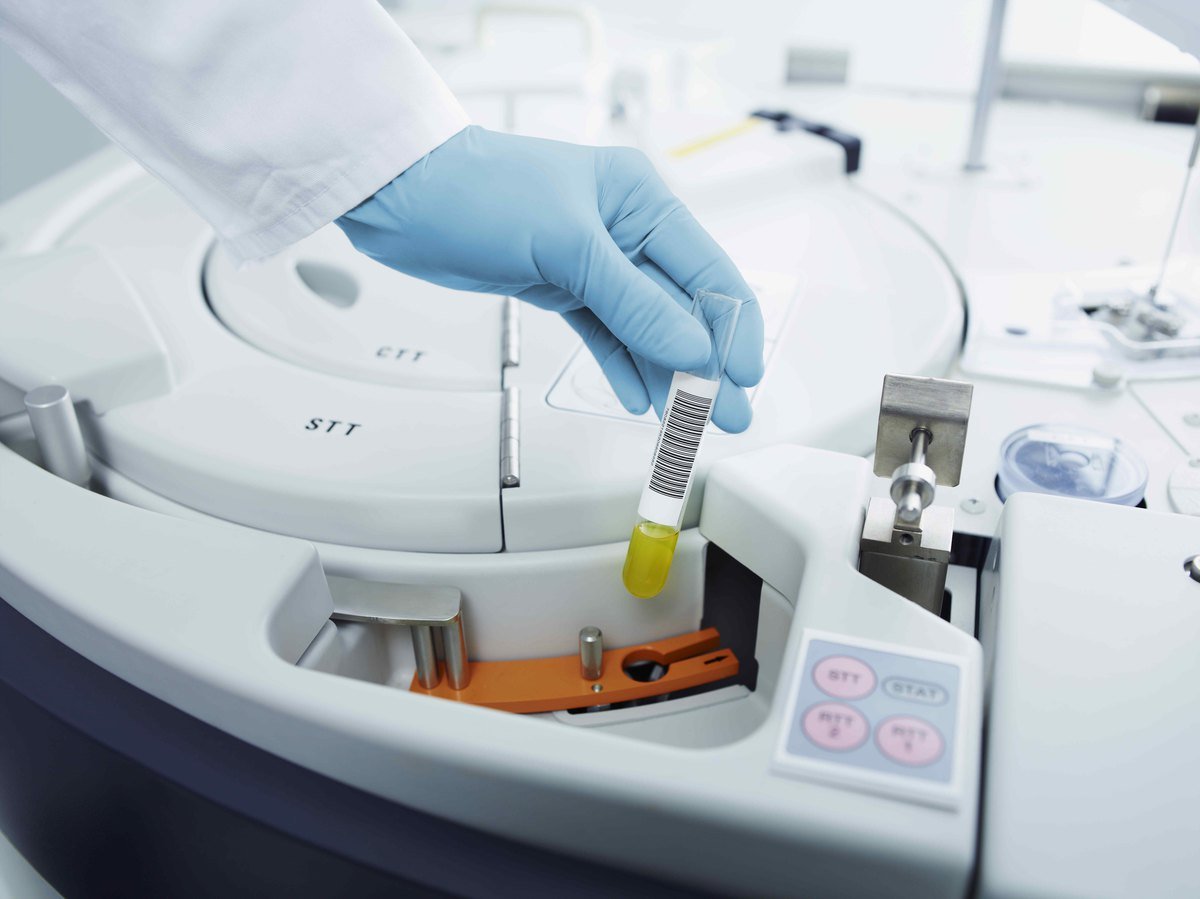

- STAT-analytics – STAT port enables easy STAT sample determination
- Photometry throughput – 800 tests/hour
- ISE throughput (Na, K, CI) – 600 tests/hour
- Sample throughput rate – Maximum 800 samples/hour
- Measuring principle – Colorimetry (Rate/End Point); Turbidimetric Immunoassay; ISE: simultaneous measurement of Na, K, CI
- Barcode identification – Automatic barcode scan for reagents, samples and STAT samples
- Calibration – Linear, non-linear, multi point
- Sample tubes/cups – Most commonly used blood collection tubes and sample cups
- Sample dilution – Dilution ratio: 2 to 300 times
- Sensors – Liquid-level sensor, clot sensor and crash sensor
- Reagent dispensing method – 2 probe system capable to dispense 3 reagent components
- Reagent tray standard setting – Total 45 containers per tray with 40 mL
- Reagent container capacity – 20, 40 and 70 mL with special adapters for 20 mL containers
- Reaction disk – Rotating reaction carousel with turntable and 231 reusable plastic cuvettes
- Reaction times and temperature – 3, 4, 5, 10, 15 minutes at 37 ± 0.1 °C; Extended reaction time: 21 or 31 minutes
- Reflex testing capability – Yes
- Photometry – 14 wavelengths: 340, 410, 451, 478, 505, 545, 571, 596, 658, 694, 751, 805, 845, 884 nm
- Automatic maintenance – Automatic startup and shutdown by weekly timer
- Required pure water – 20 Liter/hour; water purity: ≤ 1 ps/cm
- Ambient temperature/humidity – Temperature: 18 °C to 30 °C/humidity: 40 % to 70 %
- Power supply – AC 220 V +10 %, 50/60 Hz; 2.6 kVA
- Dimensions – 122 cm (W) x 85 cm (D) x 110.8 cm (H)
- Weight – Approximately 450 kg
DiaSys TLA solution
The DiaSys total Laboratory automation system (TLA) is an open, flexible and tailor-made solution for pre-analytical, analytical and post-analytical work. The pre-analytical part may consist of a tube loading module, centrifuge(s) and de-capper. Based on a high number of instrument interfaces and robotic modules users in laboratories can configure the tracking line accordingly to individual needs and expectations. Besides the DiaSys BioMajesty® JCA-BM6010/C a large selection of immunoassay- coagulation- and hematology-analyzers can be connected via bypasses for analytics. For post-analytical purposes a re-capper, a cold storage (up to 13.000 tubes) or tube unloading module (incl. retrieval option for re-testing) are available. The test ordering, sample routing and result management is controlled by a so called instrument manager software which is connected to the laboratory information system (LIS) This concept leads to optimization of processes in the daily routine of IVD laboratories, consolidation of workplaces, reduction of manual work and errors as well as improved turn around time.
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
Part Auto Hematology Analyzer
Compact & Fully-Automated Bench Top Analyzer
- Efficient testing with precision reference laboratory quality results
- Compatibility with two modes of sampling and various printing options
- User-friendly with auto-cleaning of sample probe and tubes and automatic fault processing function
- Low consumption of only three reagents and ≤20uL of sample
- Lightweight design for easy portability
– 2 Reagents
– 21 Parameters
– 60 Samples/hour
– Low consumption of reagent and sample
Reliable results – A matter of water
Quality and purity of water is of extreme importance in clinical diagnostics. In analyzers it is used to wash cuvettes, probes and mixing paddles as well as for dilution of samples and blank measurements of cuvettes.
Therefore it affects the precision of the test. Pure water prevents contamination, cross contamination and carry over. Furthermore, insufficient water quality may have a negative impact on patient results because remaining particles or ions might influence reagent performance and lead to unreliable results or reruns. This increases costs for calibrators, controls and reagents.
In combination with our analyzers and reagents, water purification systems from DiaSys complete the package for reliable patient results.
DiaSys water purification – Decision for quality

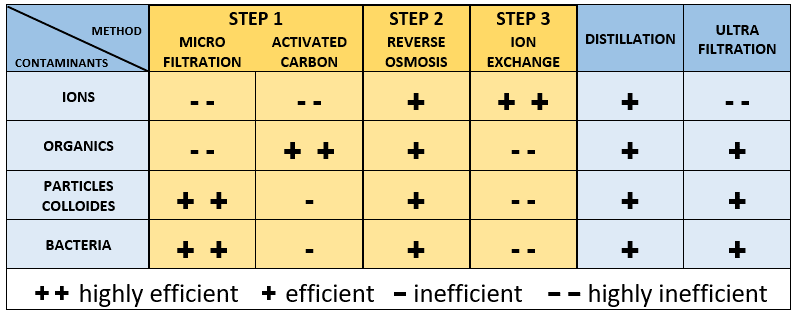

It is essential to remove all sources of contamination as ions, organics, particles, colloids and bacteria to obtain pure water. Different processes can be used to produce pure water, each with its own advantages but also limitations. Therefore, a combination of purification steps is required to achieve high quality laboratory water.
DiaSys new water purification systems, O mini+ and O maxi+ use a combination of four different purification methods in three integrated steps to provide pure water for operation of laboratory equipment and analyzers. The steps are micro- and activated carbon filtration followed by reverse osmosis and finalized with ion exchanges.
The combination of these purification procedures results in high quality laboratory water free from particles, bacteria, organics and ions.
Auto filling for respons®240c, respons®920 or respons®940 system
To optimize daily working routine DiaSys offers an auto filling solution for the DI-water tank of the respons®240c, respons®920 or respons®940. It prevents the analyzer from being stopped due to lack of water, which possibly leads to loss of patient results. It also eliminates the time spent checking the water level and refilling the DI water tank and thus makes laboratory work even more efficient.

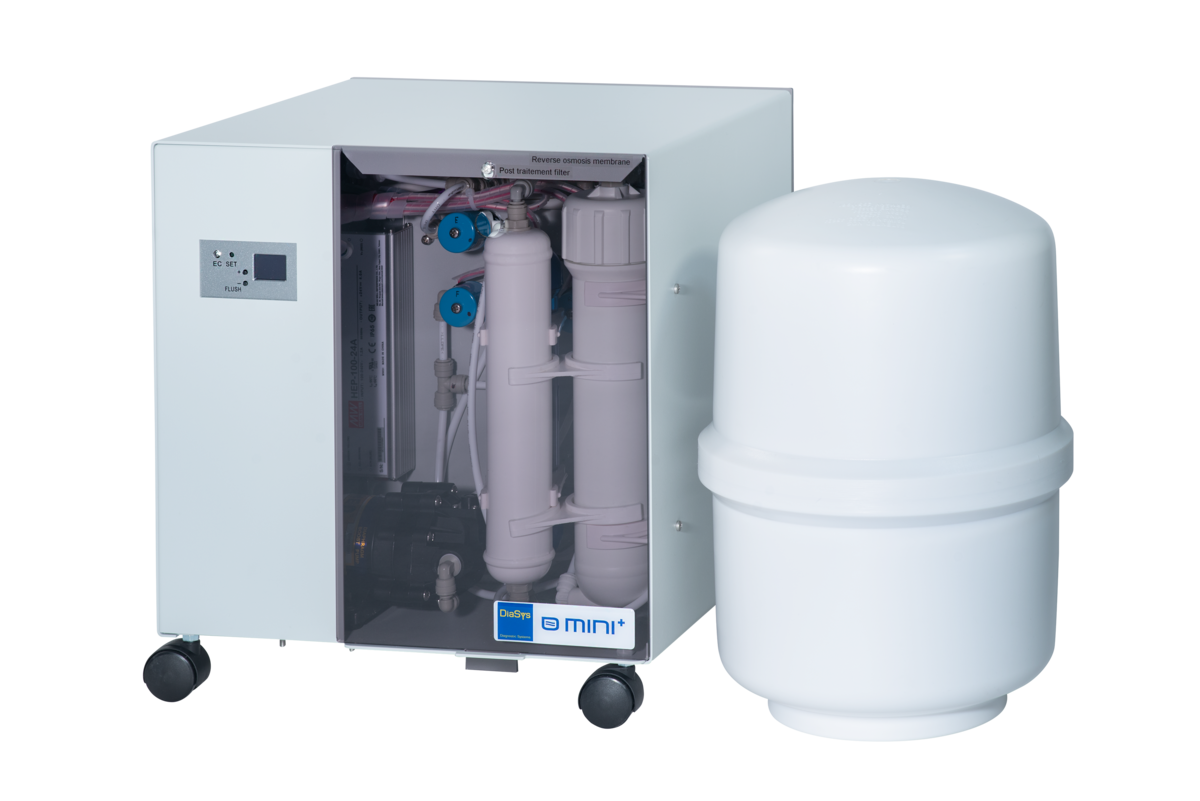

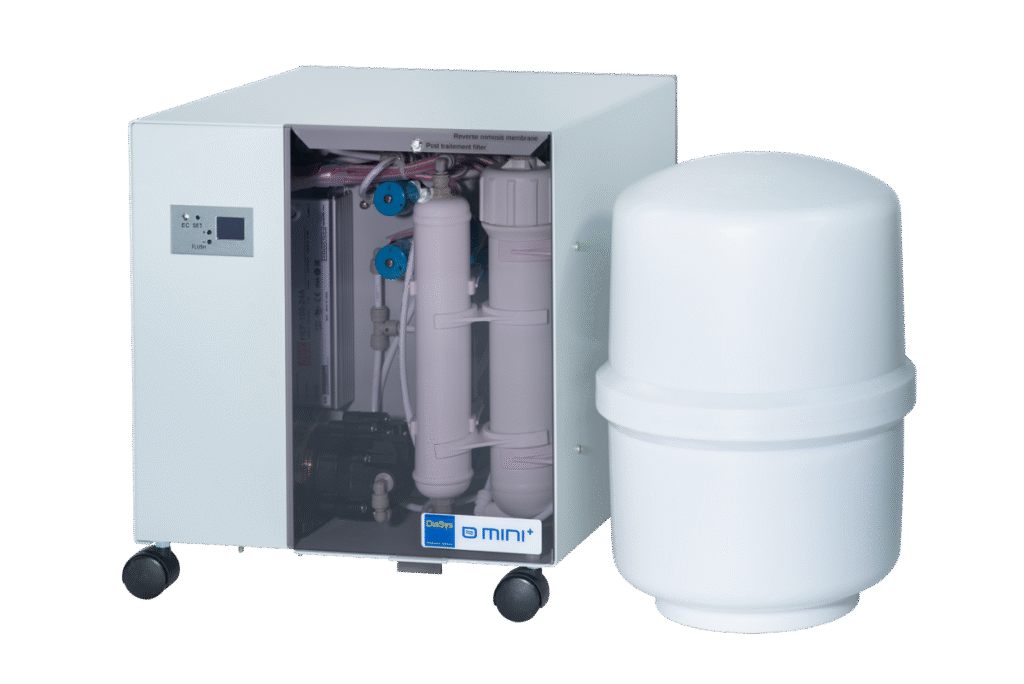

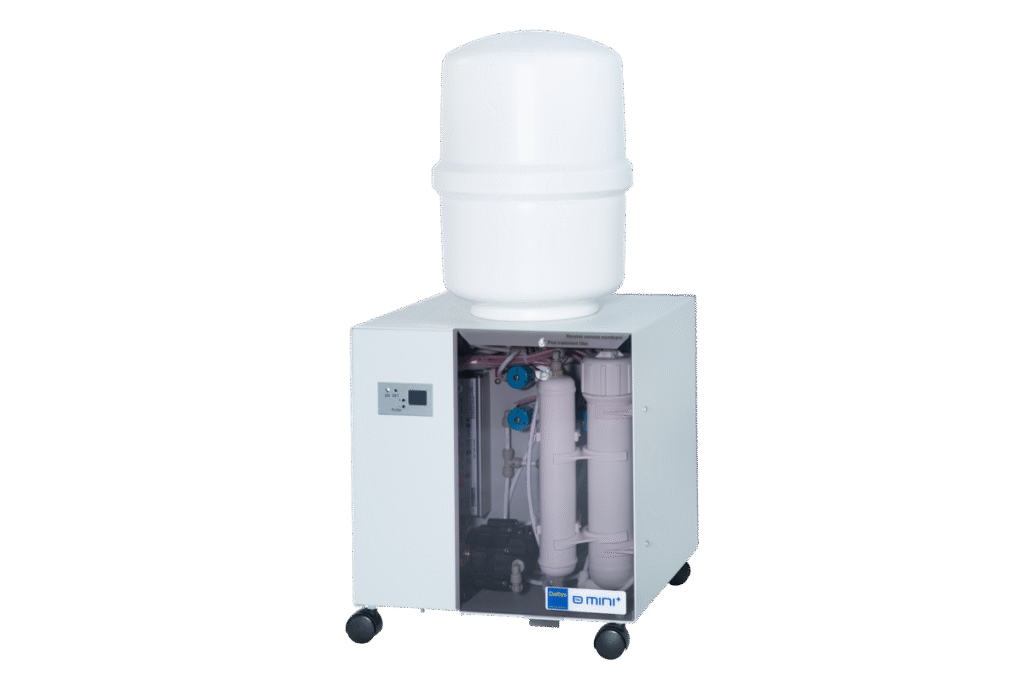

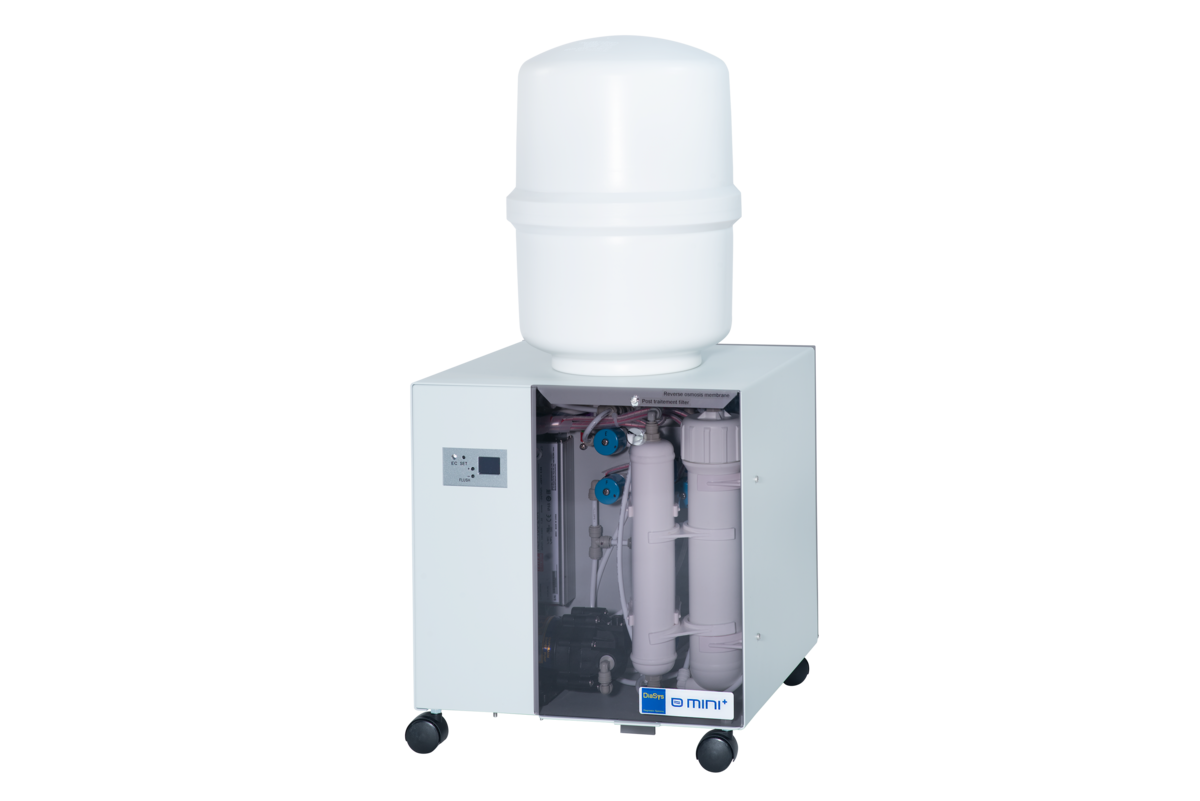

O mini+
- Adapted for respons®240c, respons®910 and respons®920
- Closed housing for sensitive areas
- LCD display showing pressure and conductivity
- USB port for data export and data monitoring
- Mounted water tank
- Mounted rolls for easy handling and moving
Technical Specifications
- Power source – 230 volts ~ / 50 Hz.
- Reverse Osmosis membrane – 75 GPD
- Production flow at 25°C – 15 liters / hour
- Production flow at 10°C – 9 liters / hour
- Pure Water / Waste Water Ratio – 34% / 66%
- Resins volume and type – 0.75 L + 0.25 mixed bed resin
- Max. supply water temperature – 38°C
Max. supply water hardness – 4 mmol/L
- Admissible pH – 3 – 11
- Conductivity – < 1 µS/cm
- Required supply pressure – 2 – 6 bar
- Dimensions (w x d x h) – 42 cm x 39 cm x 43 cm
- Weight – Approx. 13.5 kg
- Storage tank pressurized – 12 liters

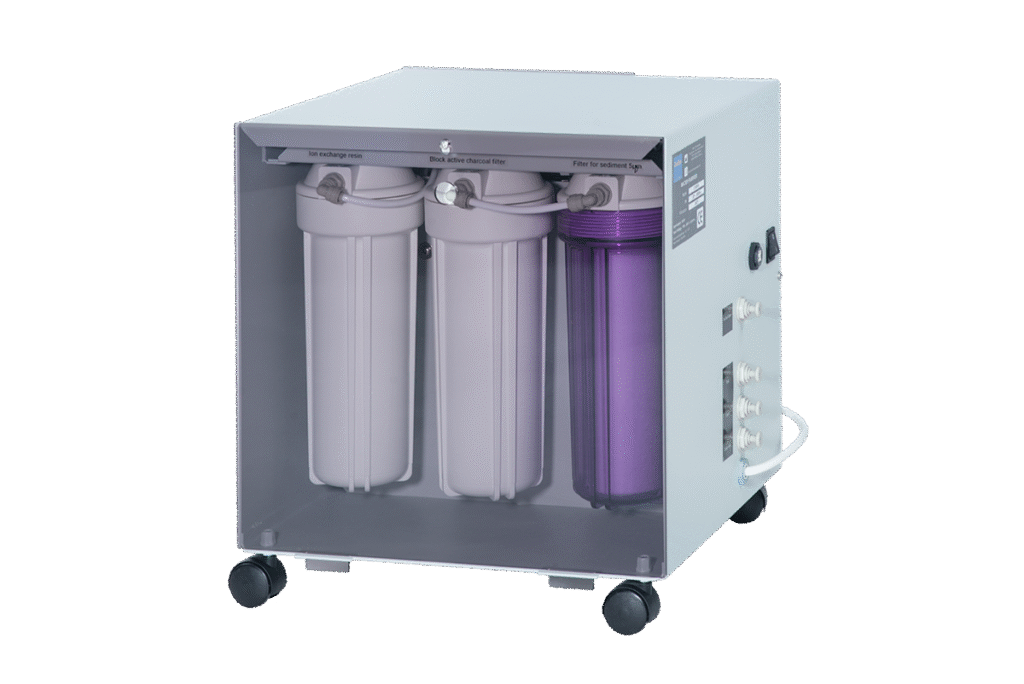

O maxi+
- Adapted for respons®420c, respons®600c, BioMajesty®JCA-BM6010/C and respons®940
- Direct water supply for BioMajesty®JCA-BM6010/C analyzer, respons®420c, respons®600c,
- LCD display showing pressure and conductivity
- USB port for data export and data monitoring
- Integrated resin bottle
- Water tank can be mounted on top or installed separately
- Mounted rolls for easy handling and moving
Technical Specifications
- Power source – 230 volts ~ / 50 Hz.
- Reverse Osmosis membrane – 300 GPD side stream
- Production flow at 25°C – 55 liters / hour
- Production flow at 10°C – 40 liters / hour
- Pure Water / Waste Water Ratio – 48% / 52%
- Resins volume and type – 11 liters mixed beds resins
- Max. supply water temperature – 38°C
Max. supply water hardness – 4 mmol/L
- Admissible pH – 3 – 11
- Conductivity – < 1 µS/cm
- Required supply pressure – 2 – 5 bar
- Dimensions 55 cm x 45 cm x 73 cm
- Weight – Approx. 58 kg
- Storage tank pressurized – 75 liters
Product Feature
Compatibility
Two modes of sampling: Whole blood, pre-diluted blood. Build-in thermal printer, external laser printer or inkjet printer.
User-friendly
10.4 colorful touchscreen. Liquid Crystal Display. Resolution : 800600. 10°incline adapt to visual observation
Less Maintenance
Auto-cleaning of sample probe and tubes. Automatic fault processing function
Low Consumption
Only need three reagents. Sample consumed ≤20uL
Efficient
60 samples per hour
Lightweight
390mm(L)×285mm(W)×390mm(H) Weight≤16Kg
Product Video
Specifications
● Precision – ≤2.0% (3.5-15.0×10^9)/L
● Linear Range – (0-100.0×10^9)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (3.0-6.0×10^12)/L
● Linear Range – (0.10-8.00×10^12)/L
● Contamination Rate – ≤0.5%
● Precision – ≤1.5% (100-180) g/L
● Linear Range – (0-250) g/L
● Contamination Rate – ≤0.6%
● Precision – ≤1.0% (70-120)fL
● Linear Range – ( – )
● Contamination Rate – ( – )
● Precision – ≤4.0% (150-500×10^9)/L
● Linear Range – (0-1000×10^9)/L
● Contamination Rate – ≤1.0%
- Power – Voltage: AC 100V~240V, 50/60Hz; Rated Power: 120VA
- Principle – Electric impedance method and Colorimetry method
- Parameters – WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms
- Reagents – Build-in LH Lyse, External Diluent, Probe Cleaner for maintenance
- Flag System – RBC, WBC, PLT abnormal sample and support customized test groups
- Storage – Up to 50,000 results including histograms, scattergrams and patient information.
Quality Control – 3 Level QC, L-J graph, X-B
- Calibration – Manual and Auto-calibration
- Accessories – Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner
- Operational Environment – Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
